Send Mail with Attachment via Microsoft Graph

Hi All,

I had to debug an Application that sends a Mail with an Attachment via Graph API. I’ve created this Small Script to Test the Functionality.

Entra Application

You need an Entra Application.

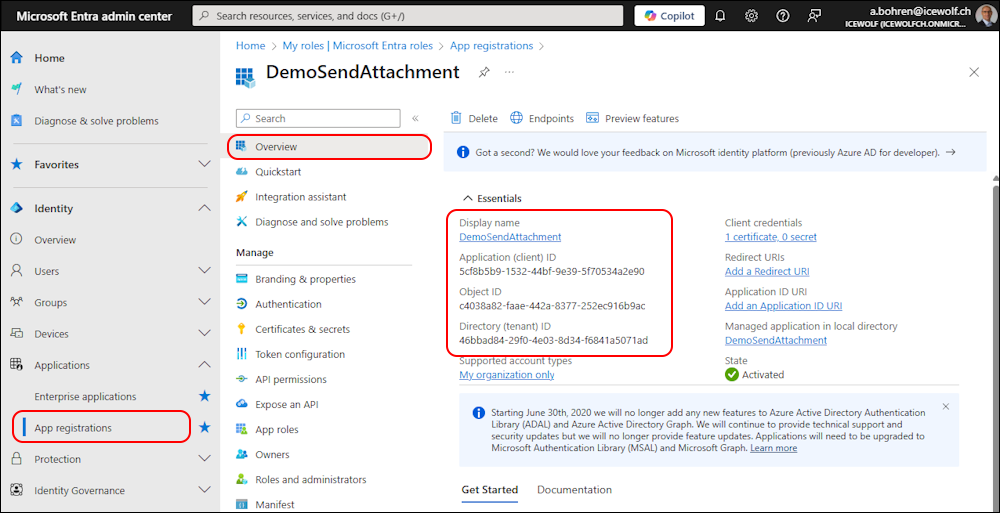

Entra Application:

Certificate Authentication:

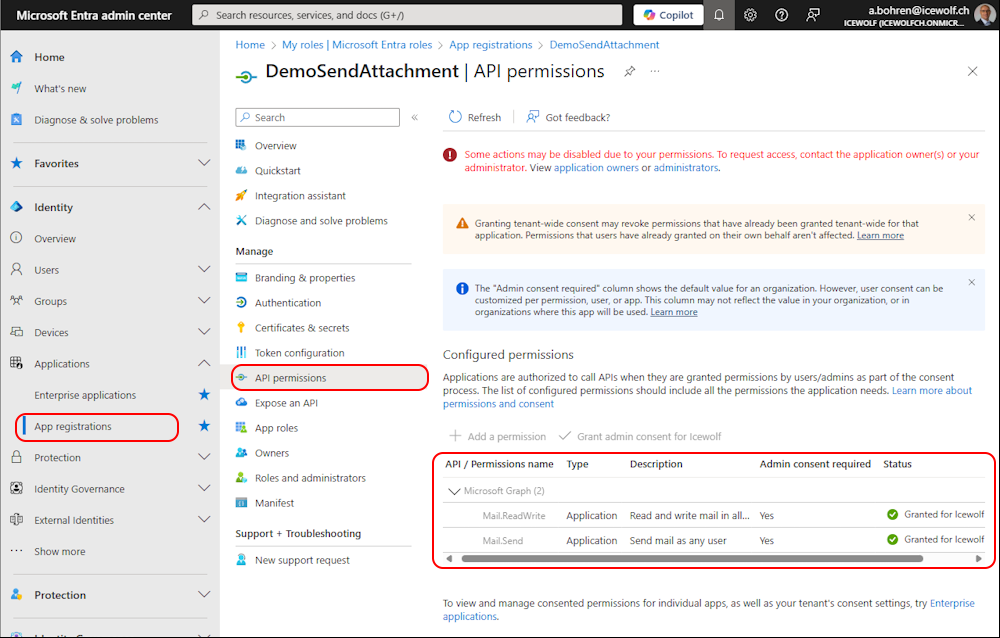

Permissions:

Application: Mail.ReadWrite
Application: Mail.Send

Application Access Policy

I’ve written a whole Article Application Access Policy in Exchange Online

Limit Microsoft Graph Access to specific Exchange Mailboxes

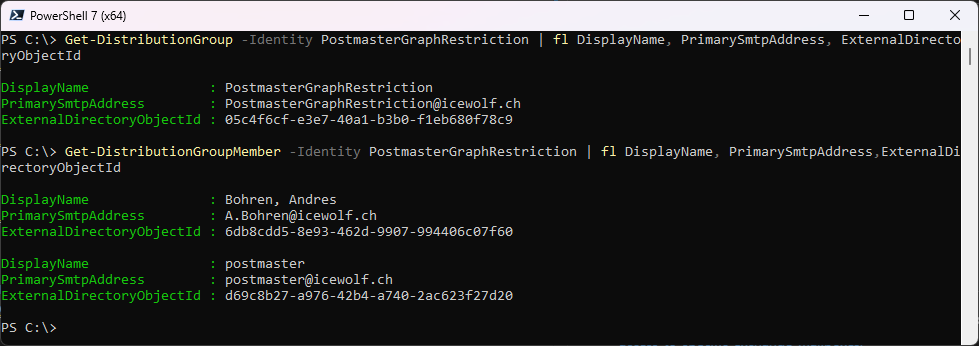

Connect-ExchangeOnline -ShowBanner:$False
Get-DistributionGroup -Identity PostmasterGraphRestriction | fl DisplayName, PrimarySmtpAddress, ExternalDirectoryObjectId
Get-DistributionGroupMember -Identity PostmasterGraphRestriction | fl DisplayName, PrimarySmtpAddress,ExternalDirectoryObjectId

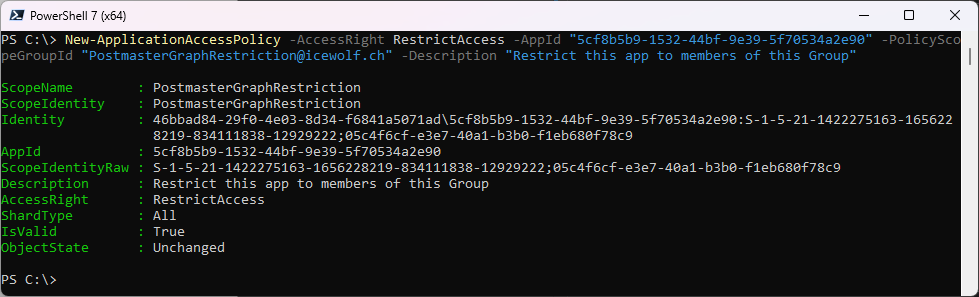

With this Application Access Policy you restrict the Graph Permissions of the Entra Application to the Members of the Distribution Group.

New-ApplicationAccessPolicy -AccessRight RestrictAccess -AppId "5cf8b5b9-1532-44bf-9e39-5f70534a2e90" -PolicyScopeGroupId "PostmasterGraphRestriction@icewolf.ch" -Description "Restrict this app to members of this Group"

Send Attachment via Graph API

Now we come to the Part where we send a Mail with an Attachment. It involves multiple steps:

Create the Message (in Drafts)
Add the Attachment (in Drafts)
Send the Draft Message

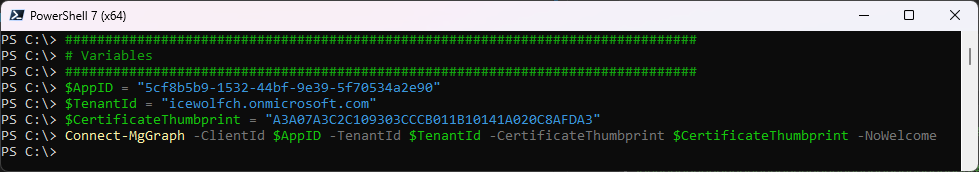

First we need to Connect with the Graph API

###############################################################################
# Variables
###############################################################################
$AppID = "5cf8b5b9-1532-44bf-9e39-5f70534a2e90" #DemoSendAttachment
$TenantId = "icewolfch.onmicrosoft.com"
$CertificateThumbprint = "A3A07A3C2C109303CCCB011B10141A020C8AFDA3" #O365PowerShell4
Connect-MgGraph -ClientId $AppID -TenantId $TenantId -CertificateThumbprint $CertificateThumbprint -NoWelcome

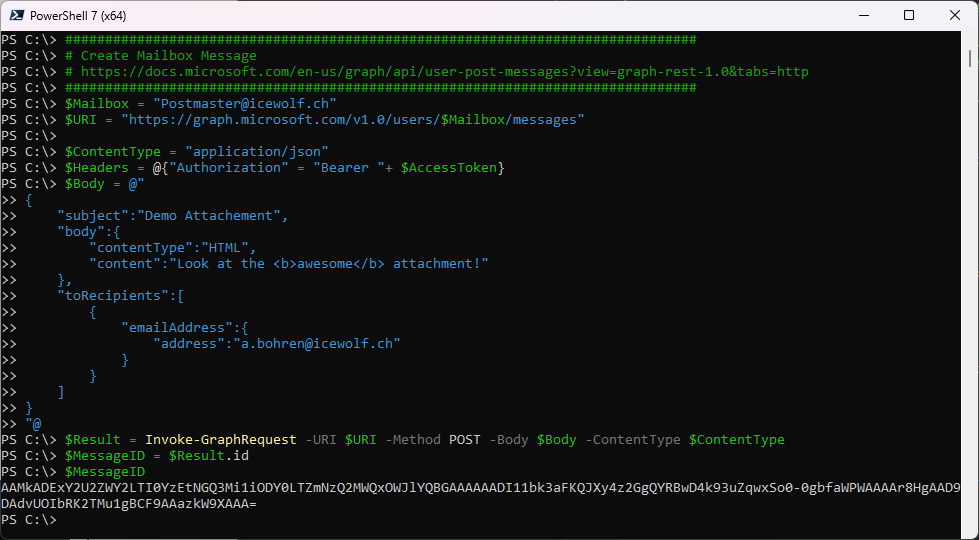

Let’s create the Draft Message

###############################################################################
# Create Mailbox Message
# https://docs.microsoft.com/en-us/graph/api/user-post-messages?view=graph-rest-1.0&tabs=http
###############################################################################
$Mailbox = "Postmaster@icewolf.ch"
$URI = "https://graph.microsoft.com/v1.0/users/$Mailbox/messages"

$ContentType = "application/json"
$Headers = @{"Authorization" = "Bearer "+ $AccessToken}
$Body = @"
{
    "subject":"Demo Attachement",
    "body":{
        "contentType":"HTML",
        "content":"Look at the <b>awesome</b> attachment!"
    },
    "toRecipients":[
        {
            "emailAddress":{
                "address":"a.bohren@icewolf.ch"
            }
        }
    ]
}
"@
$Result = Invoke-GraphRequest -URI $URI -Method POST -Body $Body -ContentType $ContentType
$MessageID = $Result.id
$MessageID

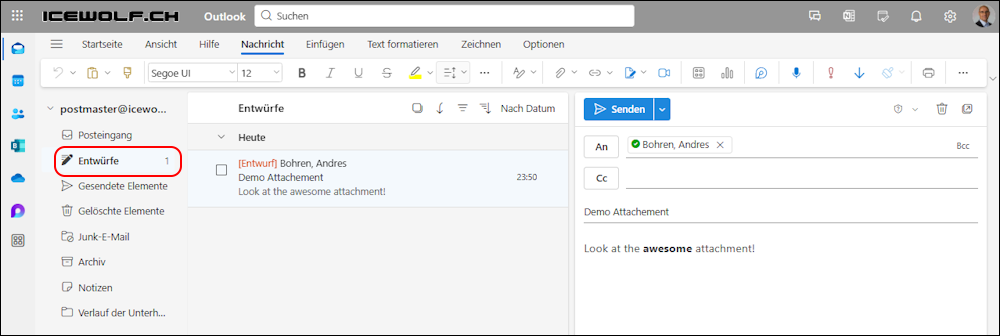

this is the Drafts Message in Outlook on the Web

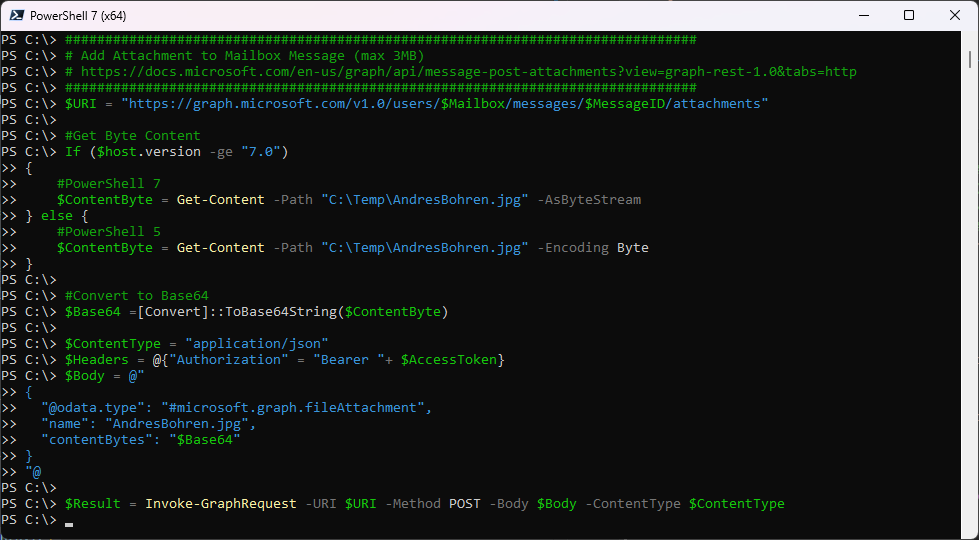

Let’s add the Attachment. Note that the Content needs to be loaded as Bytearray and then convert to Base64

###############################################################################
# Add Attachment to Mailbox Message (max 3MB)
# https://docs.microsoft.com/en-us/graph/api/message-post-attachments?view=graph-rest-1.0&tabs=http
###############################################################################
$URI = "https://graph.microsoft.com/v1.0/users/$Mailbox/messages/$MessageID/attachments"

#Get Byte Content
If ($host.version -ge "7.0")
{
    #PowerShell 7
    $ContentByte = Get-Content -Path "C:\Temp\AndresBohren.jpg" -AsByteStream
} else {
    #PowerShell 5
    $ContentByte = Get-Content -Path "C:\Temp\AndresBohren.jpg" -Encoding Byte
}

#Convert to Base64
$Base64 =[Convert]::ToBase64String($ContentByte)

$ContentType = "application/json"
$Headers = @{"Authorization" = "Bearer "+ $AccessToken}
$Body = @"
{
  "@odata.type": "#microsoft.graph.fileAttachment",
  "name": "AndresBohren.jpg",
  "contentBytes": "$Base64"
}
"@

$Result = Invoke-GraphRequest -URI $URI -Method POST -Body $Body -ContentType $ContentType

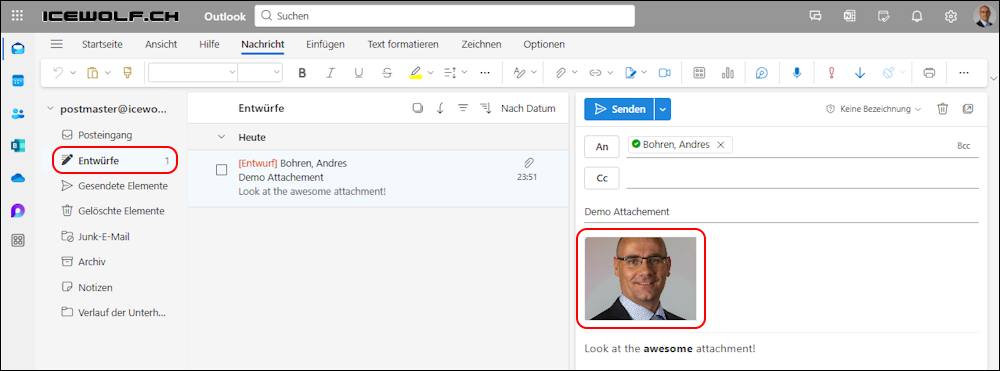

The File is now attached to the Draft Message

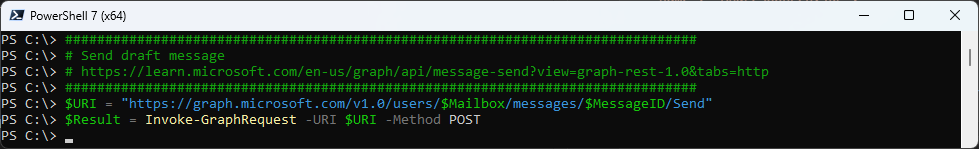

Now, we can send the Message

###############################################################################
# Send draft message
# https://learn.microsoft.com/en-us/graph/api/message-send?view=graph-rest-1.0&tabs=http
###############################################################################
$URI = "https://graph.microsoft.com/v1.0/users/$Mailbox/messages/$MessageID/Send"
$Result = Invoke-GraphRequest -URI $URI -Method POST

This is the Message i received in Outlook Classic

Summary

Now you have learned how the send an Mail with Attachment via the Graph Api and PowerShell. Hope you find this useful.
