Hyper-V migrate Gen1 VM to Gen2 to activate TPM

Hi All,

Last year i moved from ESXi to HyperV on a NUC.

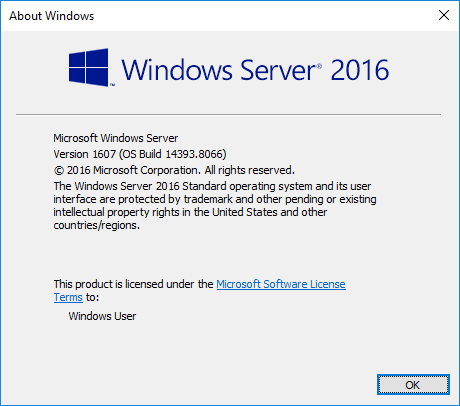

Just copyed the required VM and i still have a Windows Server 2016.

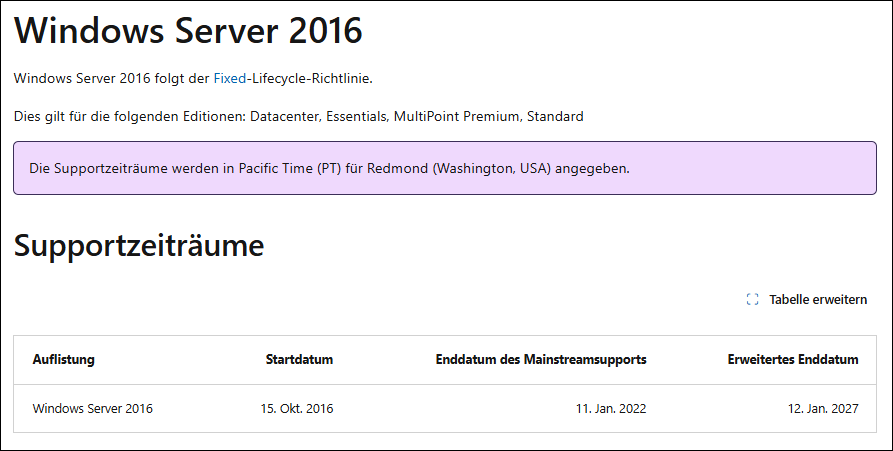

And yes, i am aware of the Windows Server 2016 Lifecycle

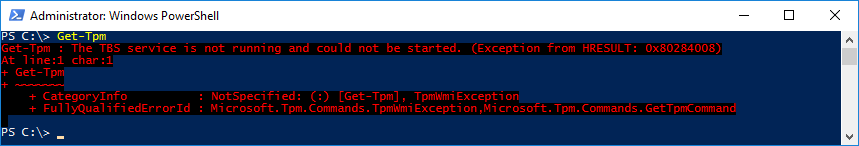

I had a requirement to use TPM on a Server. So let’s check with this PowerShell Command

Get-Tpm

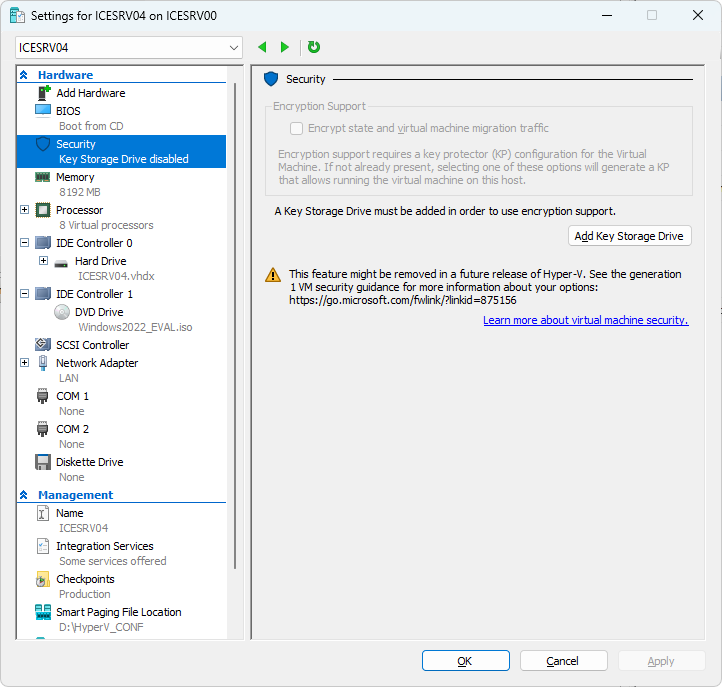

Let’s check the Hyper-V Settings - No TPM Settings available

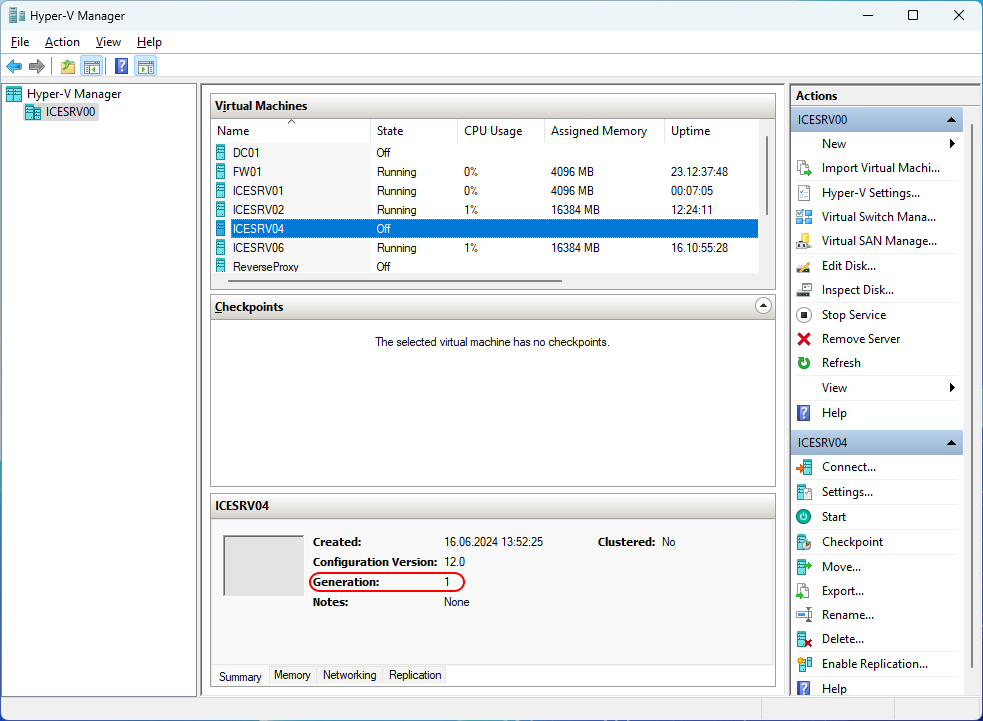

The VM is still a Generation 1

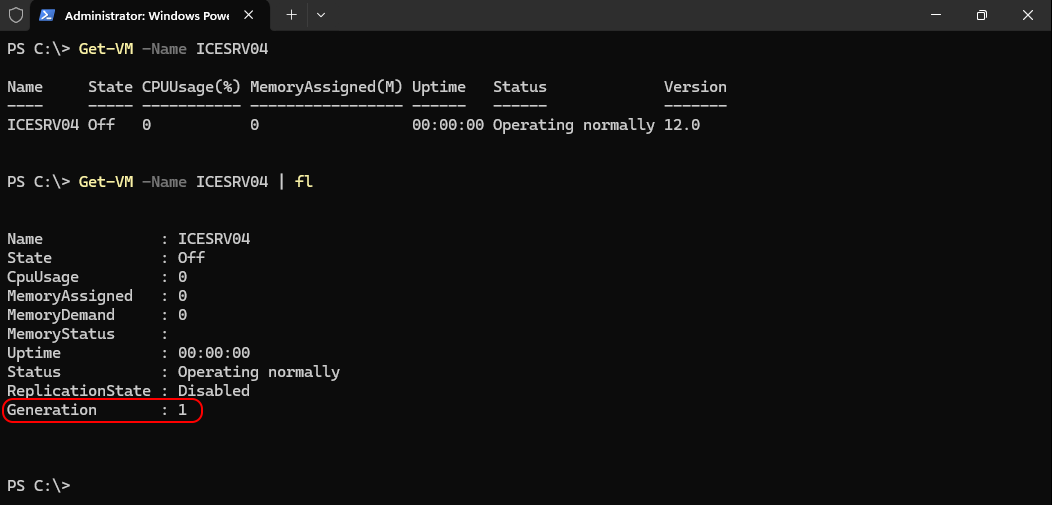

Get-VM -Name ICESRV04
Get-VM -Name ICESRV04 | fl

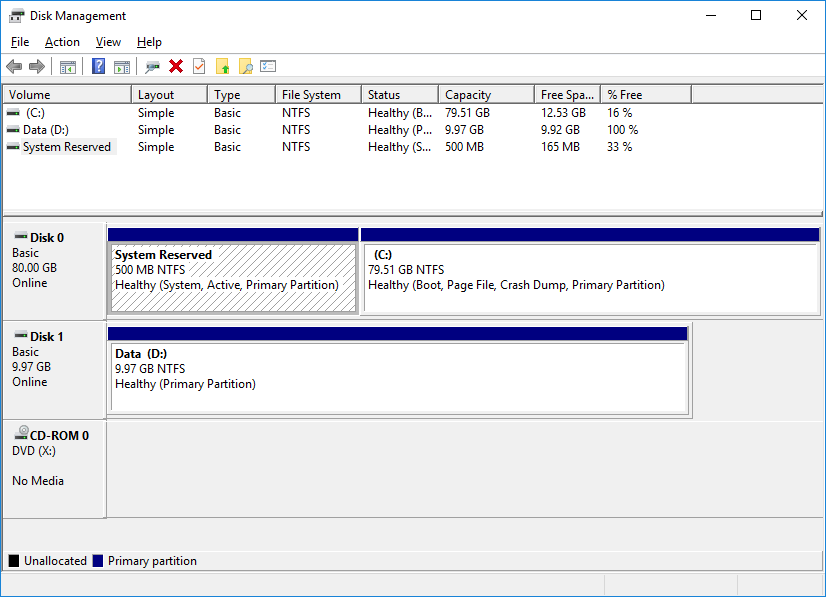

Let’s check with Disk Management - still MBR no UEFI Boot

diskmgmt.msc

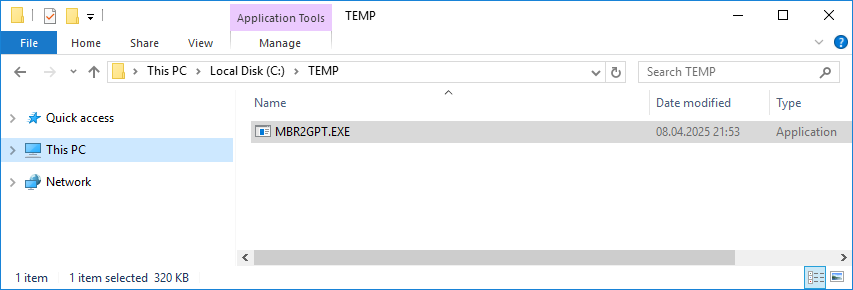

I’ve copyed the C:\Windows\System32\MBR2GPT.exe from a Windows Server 2022 to C:\Temp\MBR2GPT.exe of my Windows Server 2016 Server

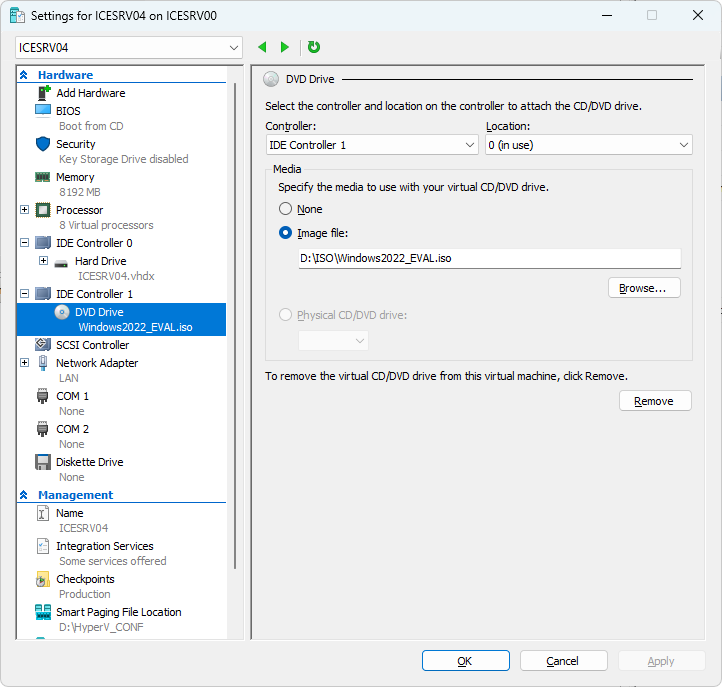

Added the Windows 2022 Eval ISO

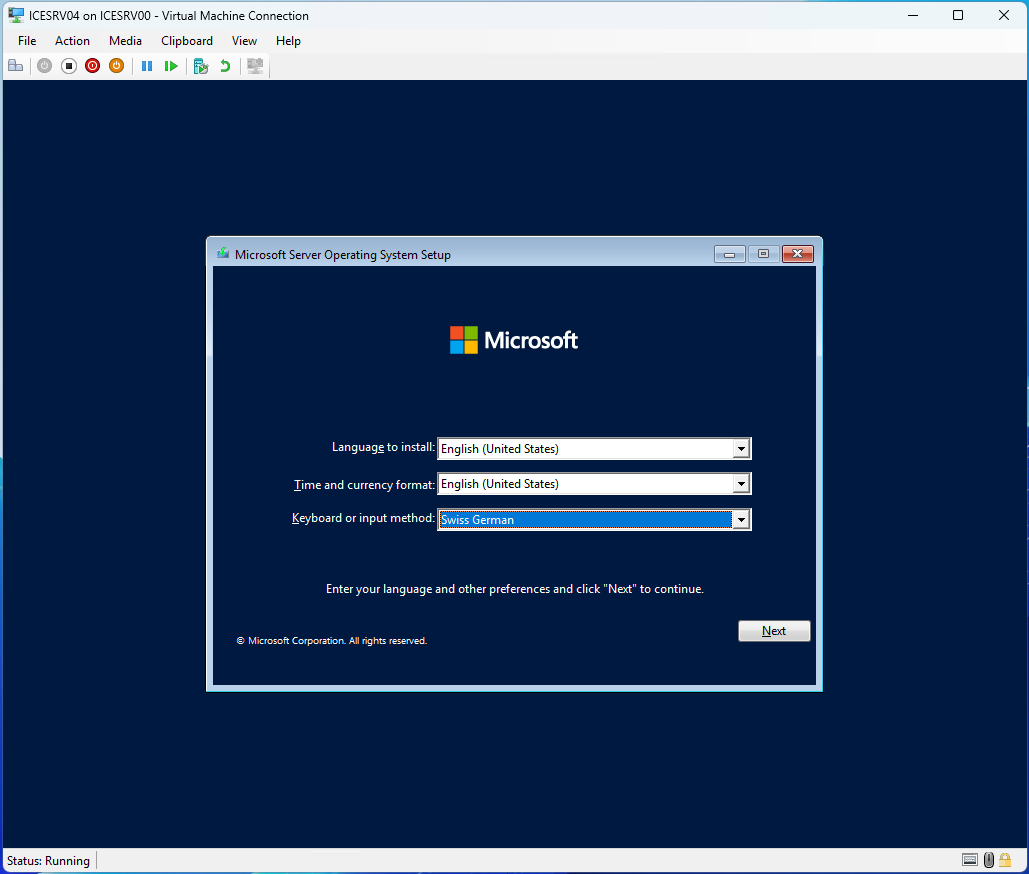

Booted into the Windows 2022 from the DVD

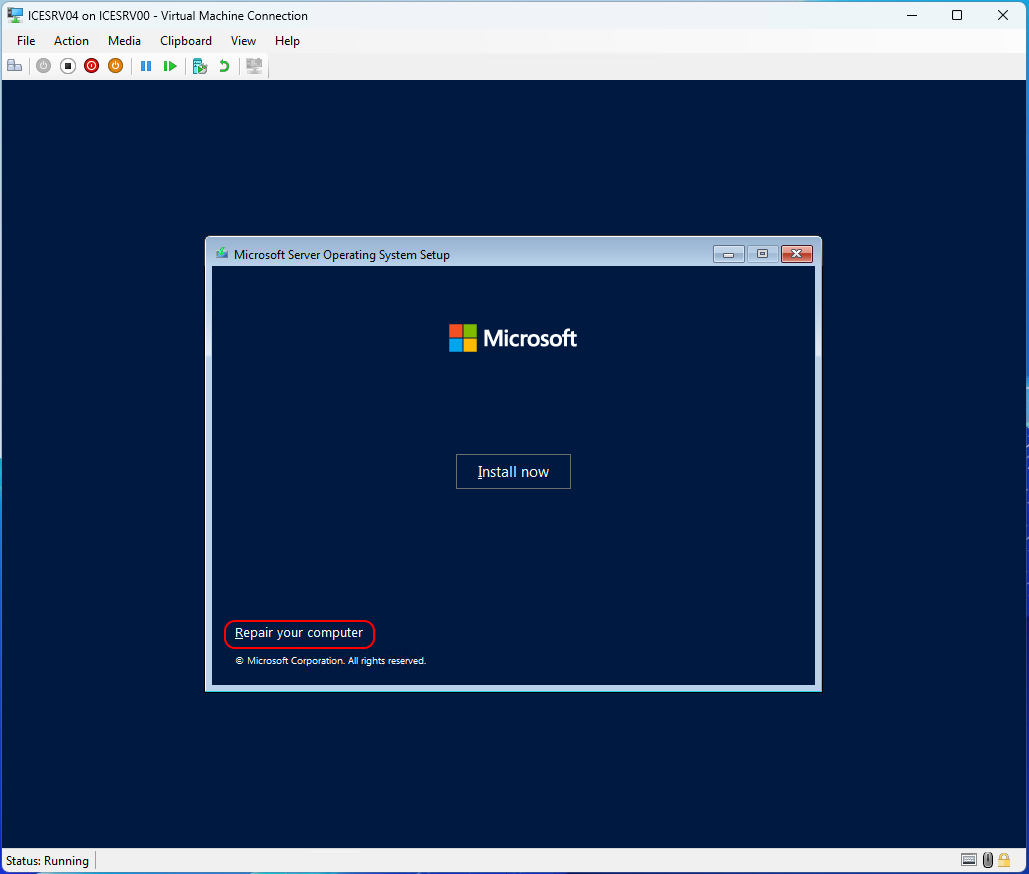

Select “Repair your computer”

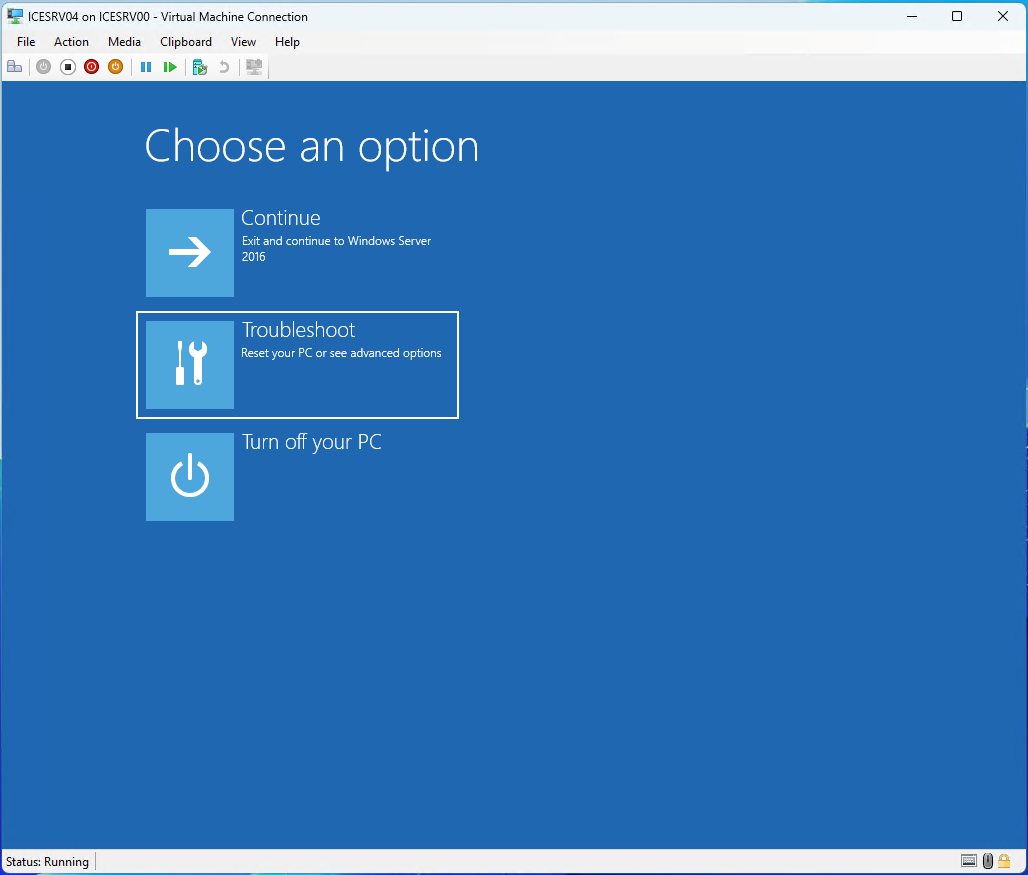

Select “Troubleshoot”

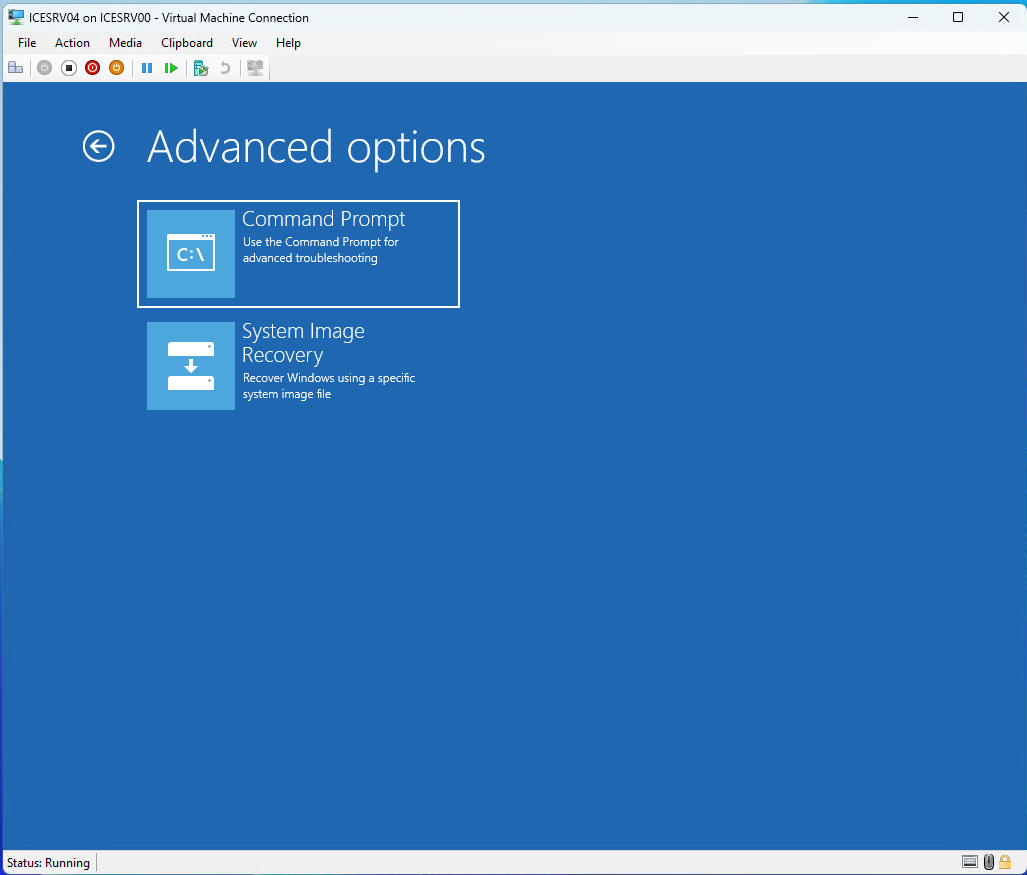

Select “Command Promt”

Figured out the Temp Folder and run

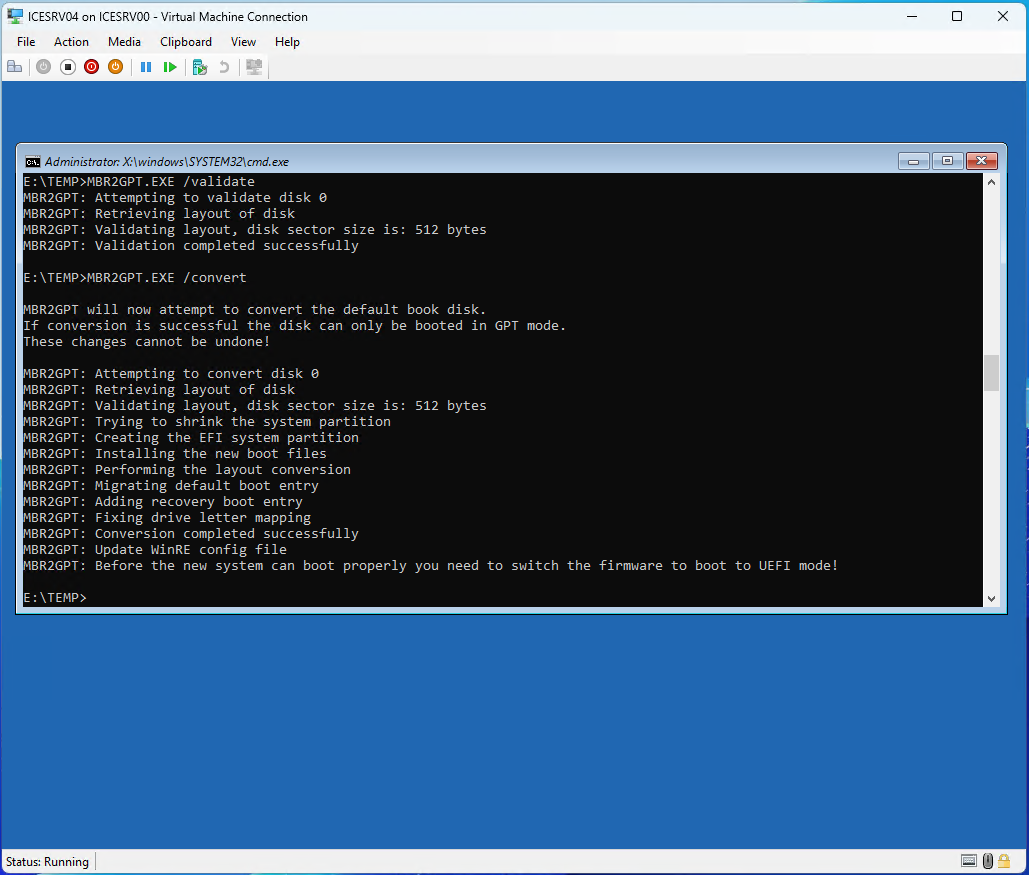

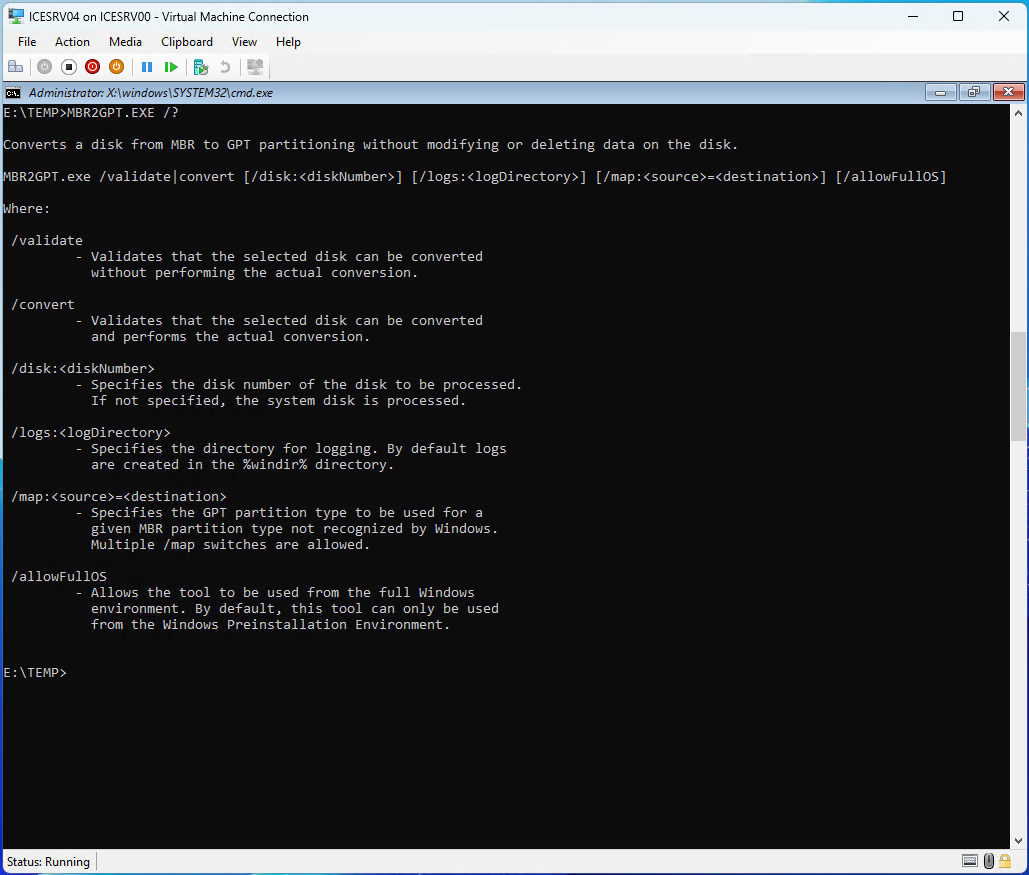

MBR2GPT.exe /?

MBR2GPT.exe /validate
MBR2GPT.exe /convert

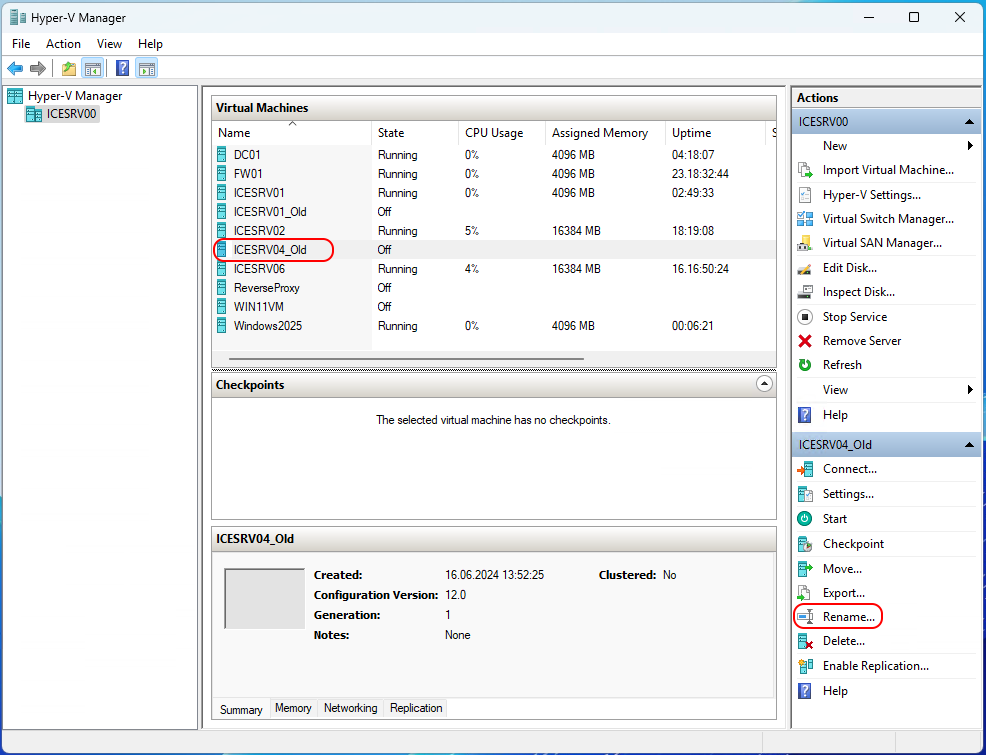

Rename the VM to “ICESRV04_Old”

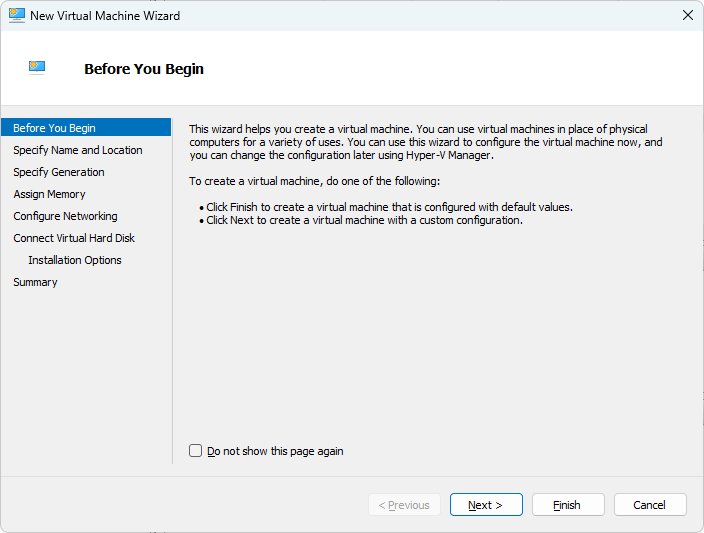

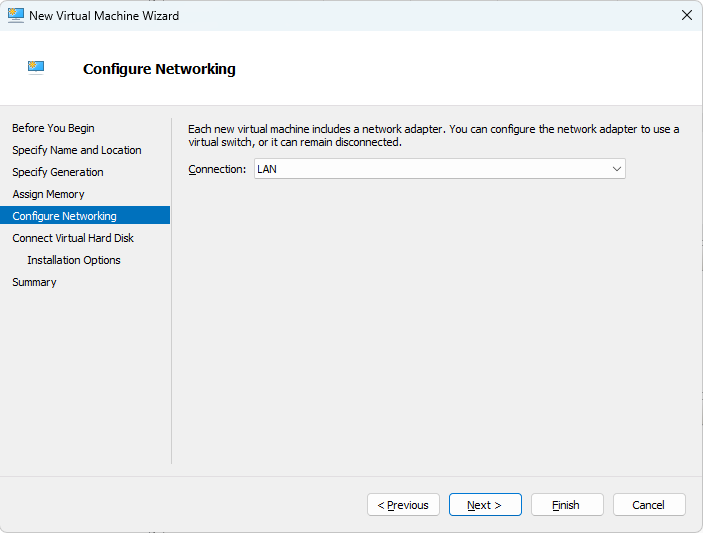

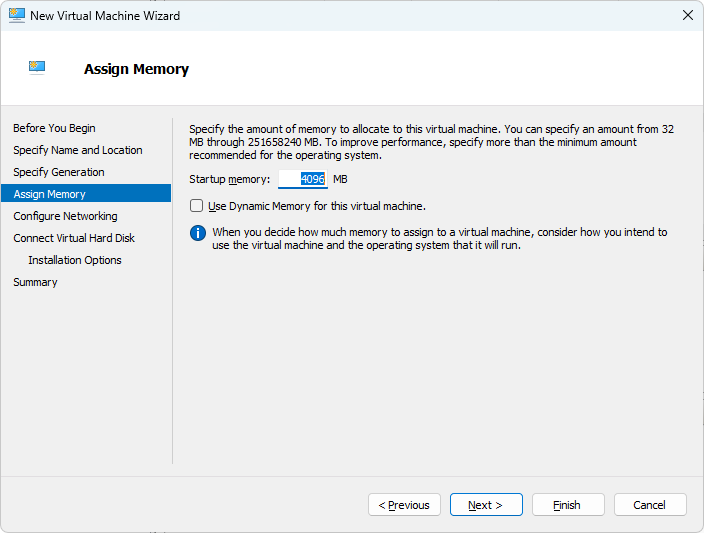

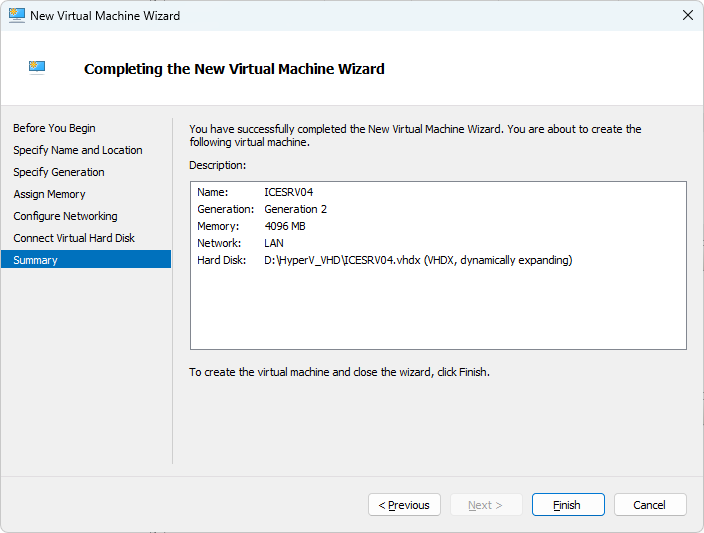

Create a new VM

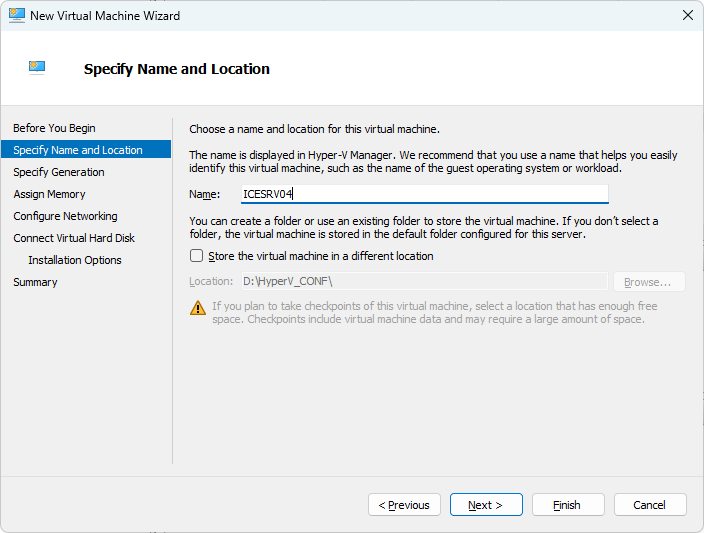

Set the Name

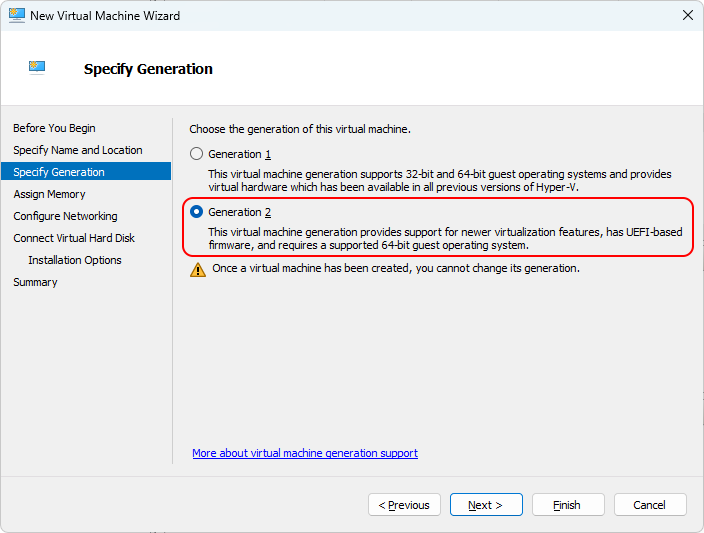

Select Generation 2

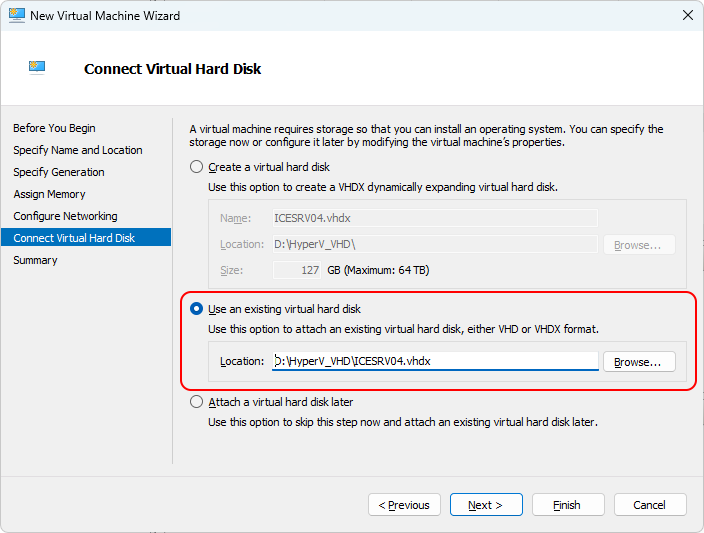

Select existing VHDX

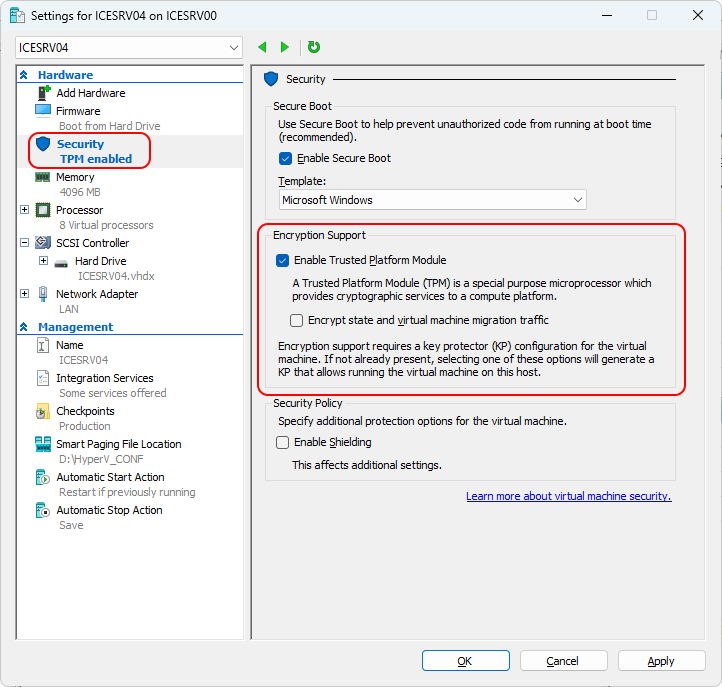

Now TPM can be enabled in the Security Settings of the VM

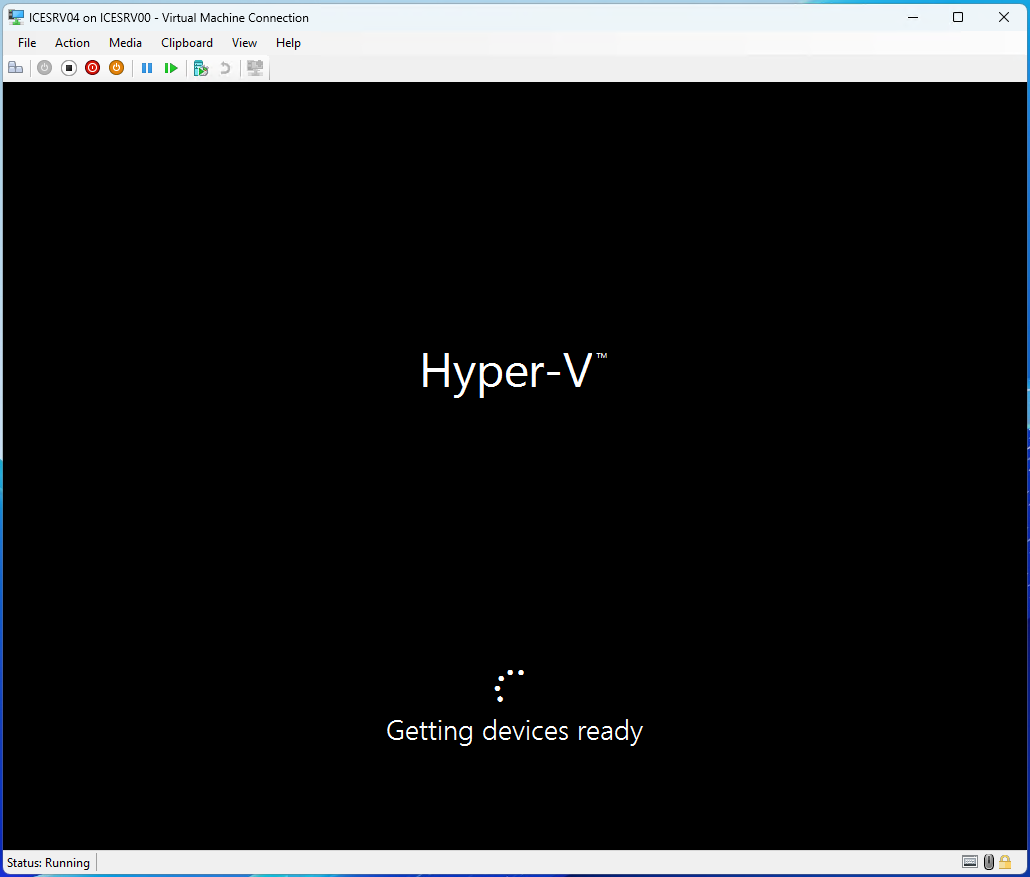

Let’s start the VM

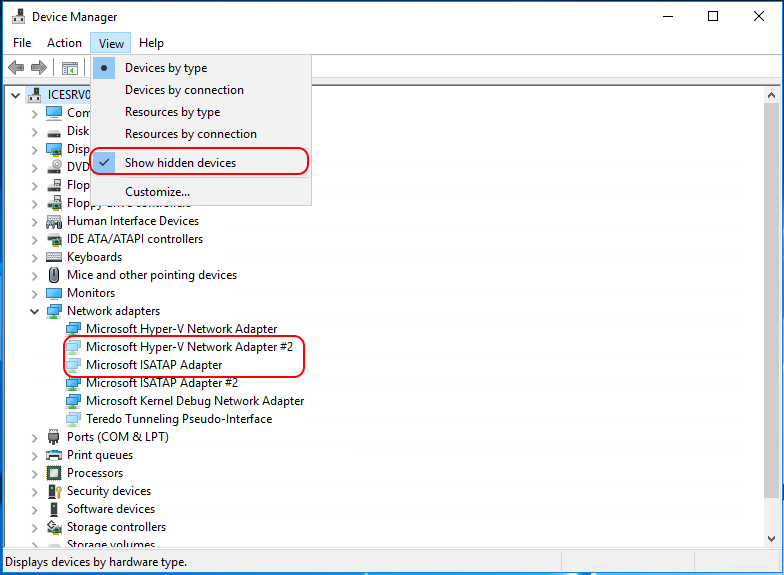

Start Device Manager and Activate “show hidden devices”. Remove the old Network Adapters.

devmgmt.msc

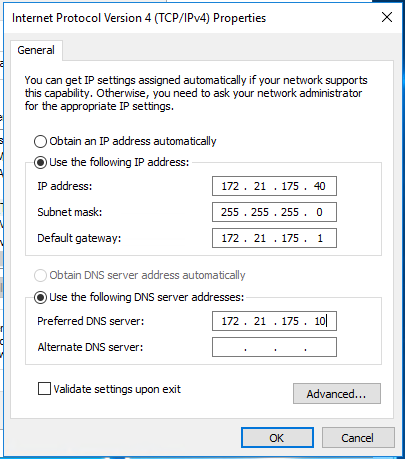

Now you can set the Static IP Address back on the NIC

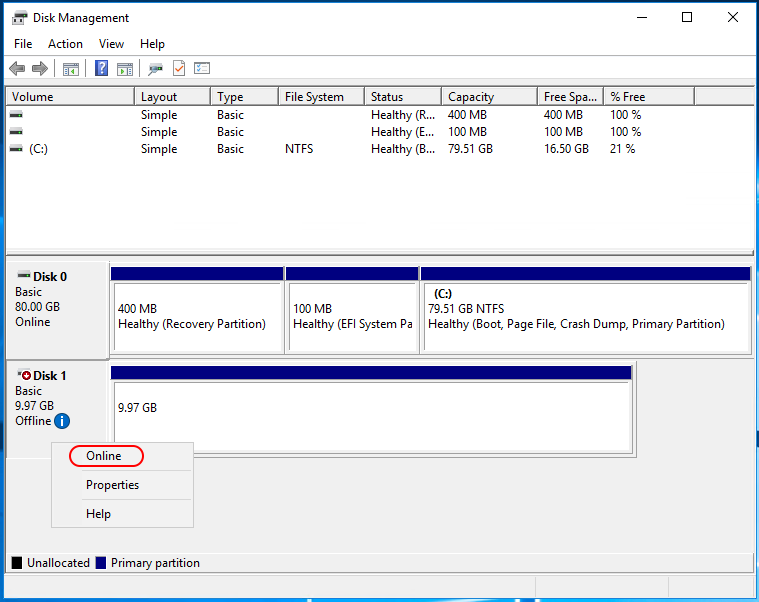

Now add the Data Disk, and bring it back online

diskmgmt.msc

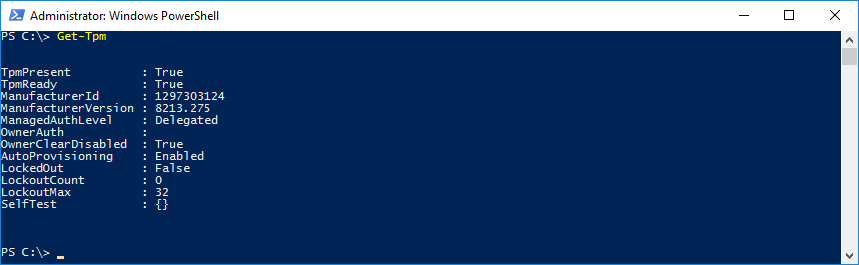

Get-Tpm

Summary

I’ve shown you how to Upgrade your Disk to GPT and UEFI so you can create a Gen2 Hyper-V VM that supports TPM.

Regards
Andres Bohren
