Renew Microsoft Exchange Server Auth Certificate with SE

Hi All,

My Exchange Server Auth Certificate is about to expire.

I’ve already blogged about renewing the Exchange Server Auth Certificate.

Renew Microsoft Exchange Server Auth Certificate

But there are some new Aspects to it:

Exchange Server SE
Dedicated Hybrid App
Graph API workflow

Before the Renewal

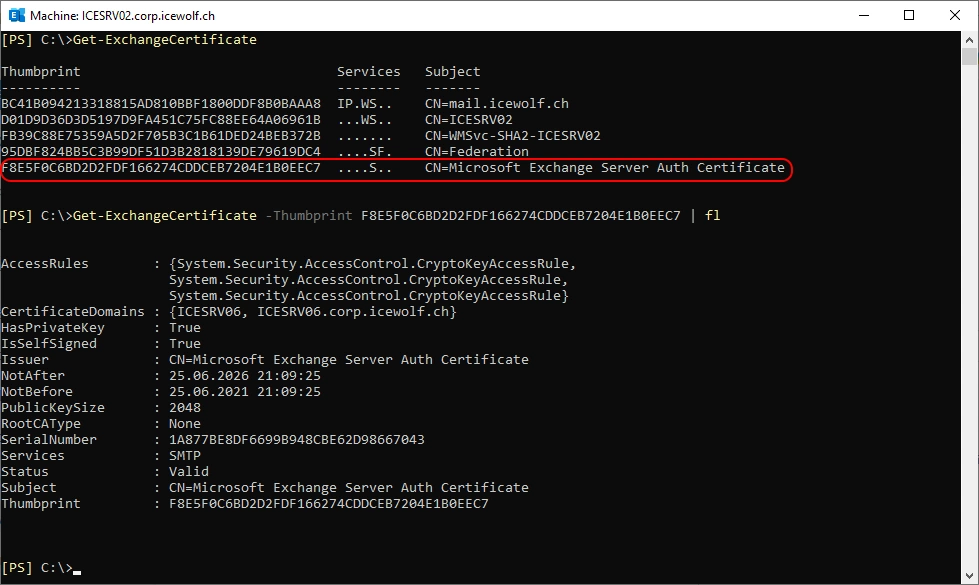

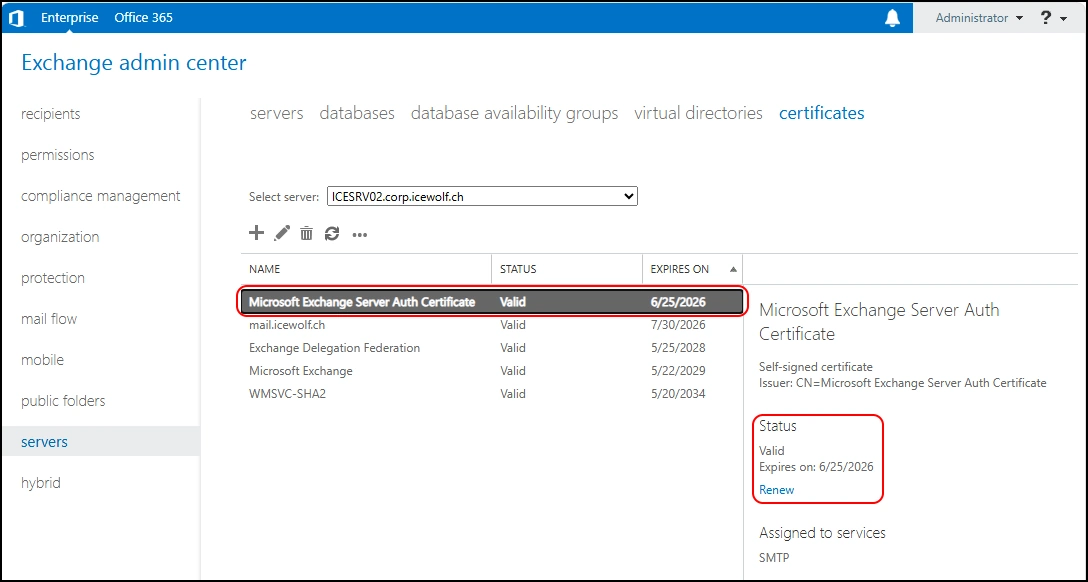

Let’s check the Exchange Server Auth Certificate in PowerShell

Get-ExchangeCertificate
Get-ExchangeCertificate -Thumbprint F8E5F0C6BD2D2FDF166274CDDCEB7204E1B0EEC7  | fl

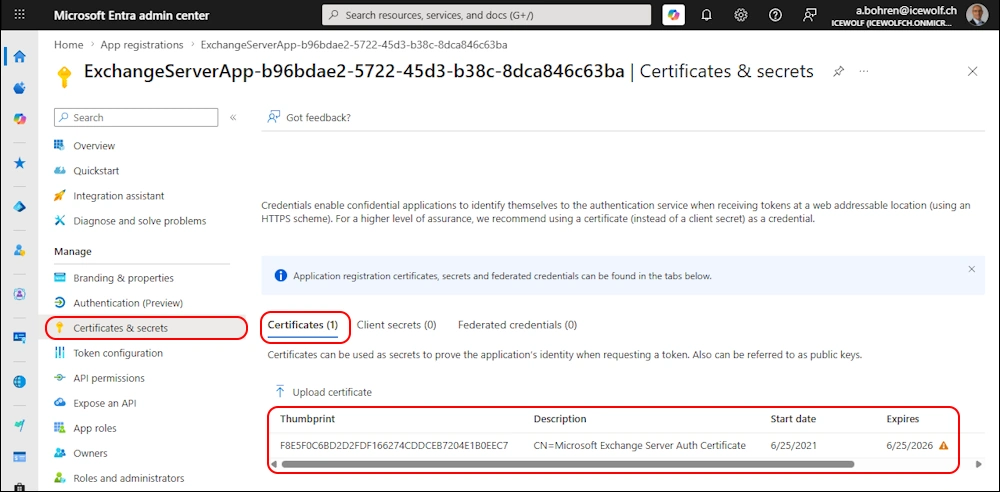

The Certificate of the dedicated Hybrid App in Entra uses the Exchange Server Auth Certificate

Renew Certificate

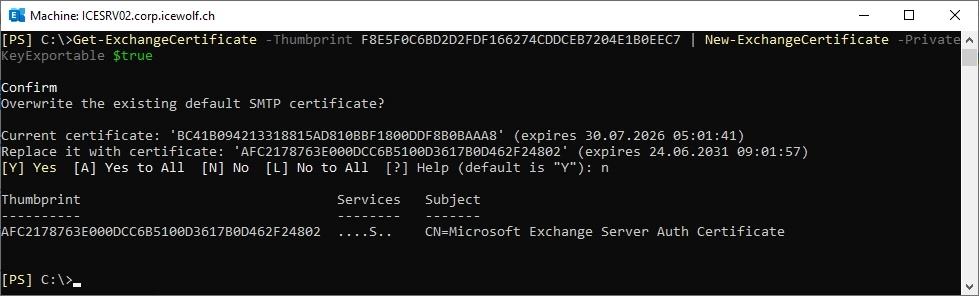

Let’s renew the Certificate with PowerShell

Get-ExchangeCertificate -Thumbprint F8E5F0C6BD2D2FDF166274CDDCEB7204E1B0EEC7 | New-ExchangeCertificate -PrivateKeyExportable $true

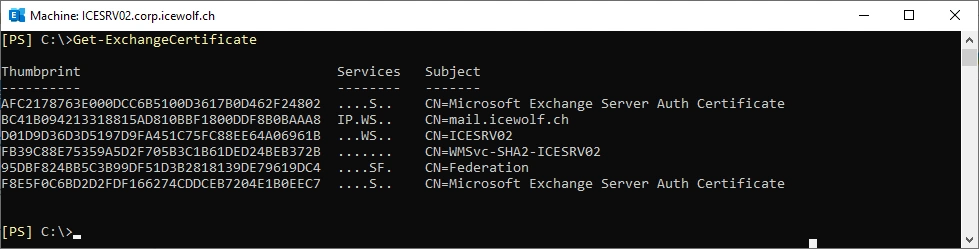

Now we have an old and a new “Exchange Server Auth Certificate”

Get-ExchangeCertificate

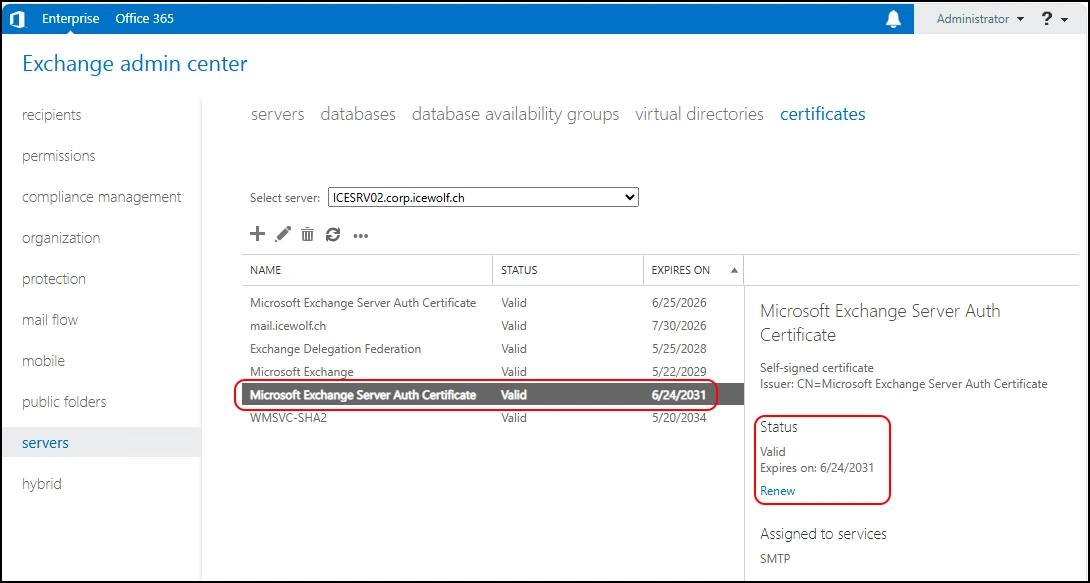

View in Exchange Admin Center

Auth Config

Now let’s remove the AuthConfig

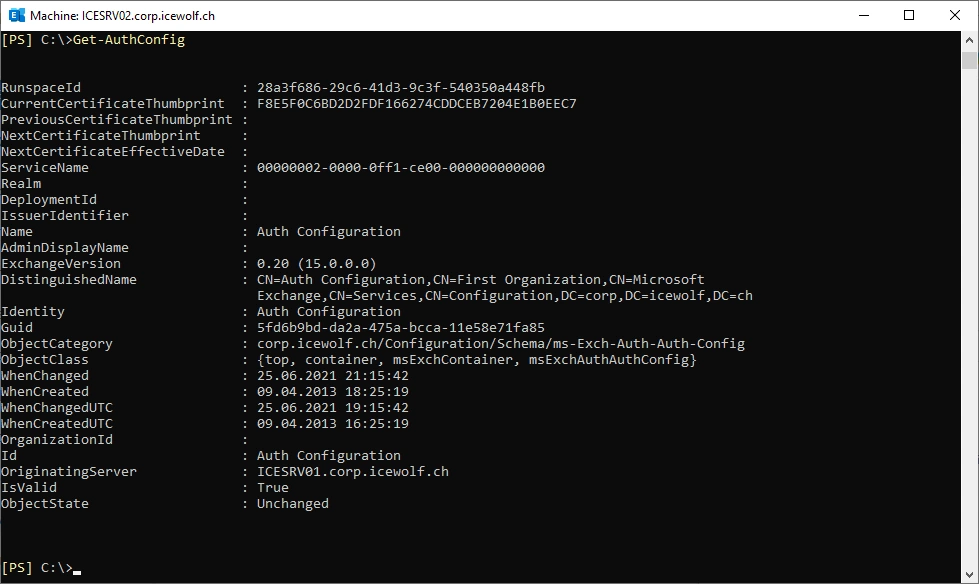

Get-AuthConfig

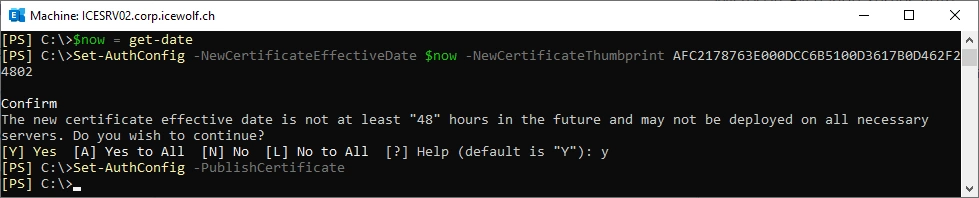

Update the AuthConfig Certificate

$now = get-date
Set-AuthConfig -NewCertificateEffectiveDate $now -NewCertificateThumbprint AFC2178763E000DCC6B5100D3617B0D462F24802
Set-AuthConfig -PublishCertificate

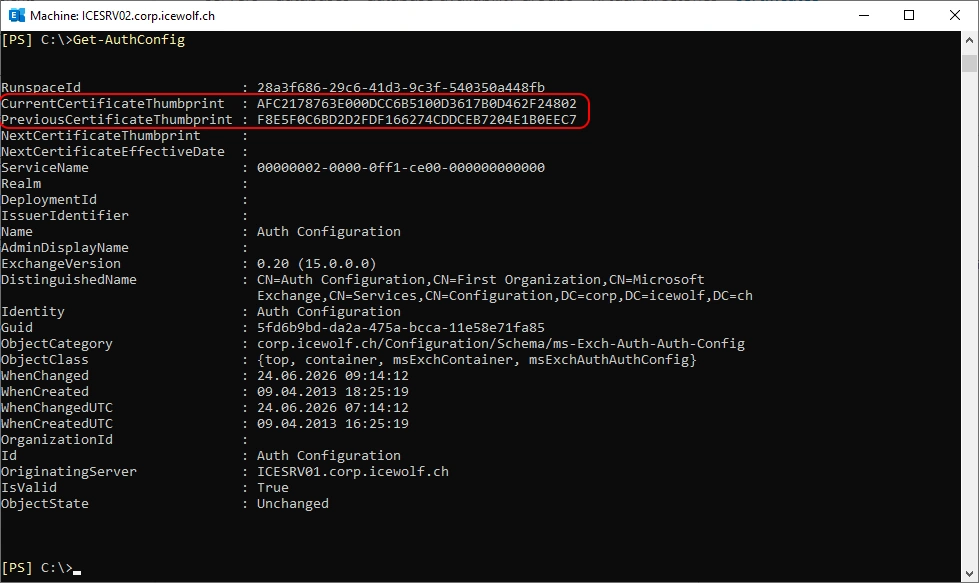

The new Certificate is now listed under CurrentCertificateThumbprint and the old Certificate is now listed under the PreviousCertificateThumbprint.

Get-AuthConfig

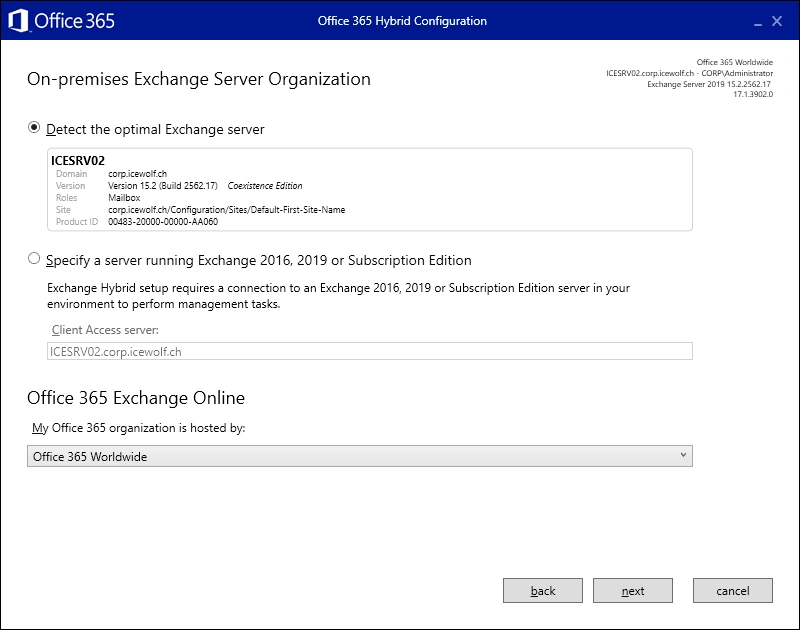

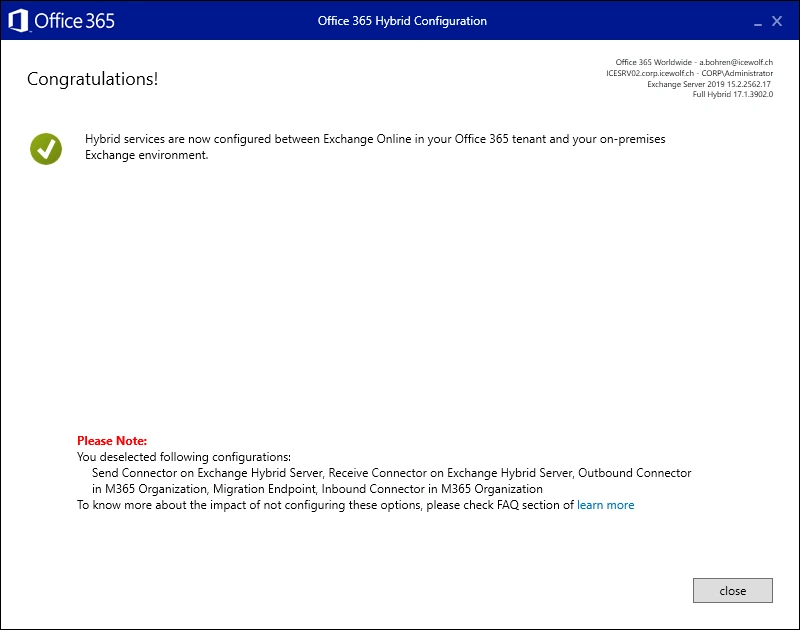

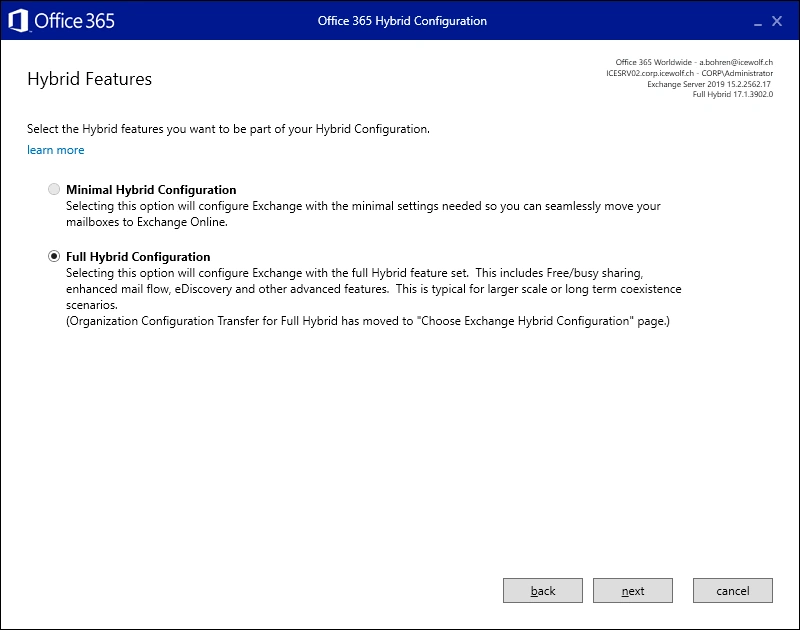

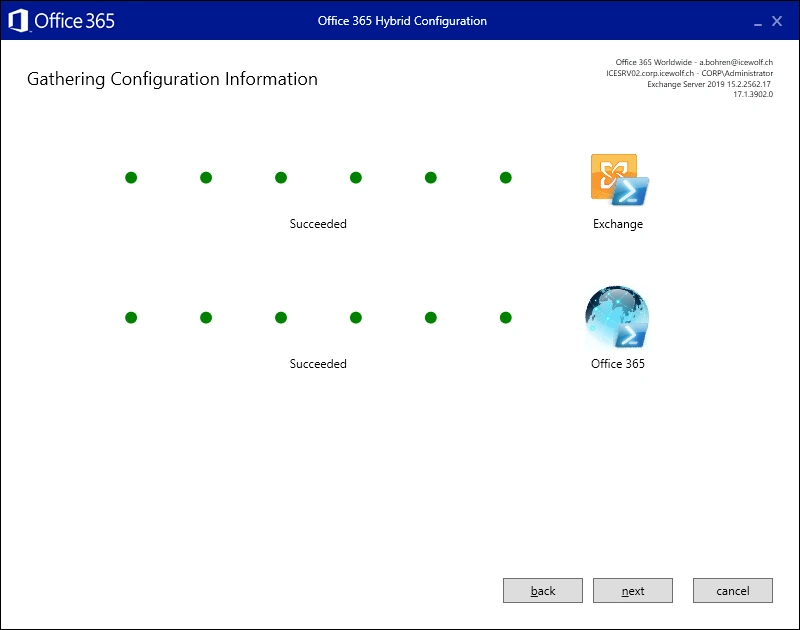

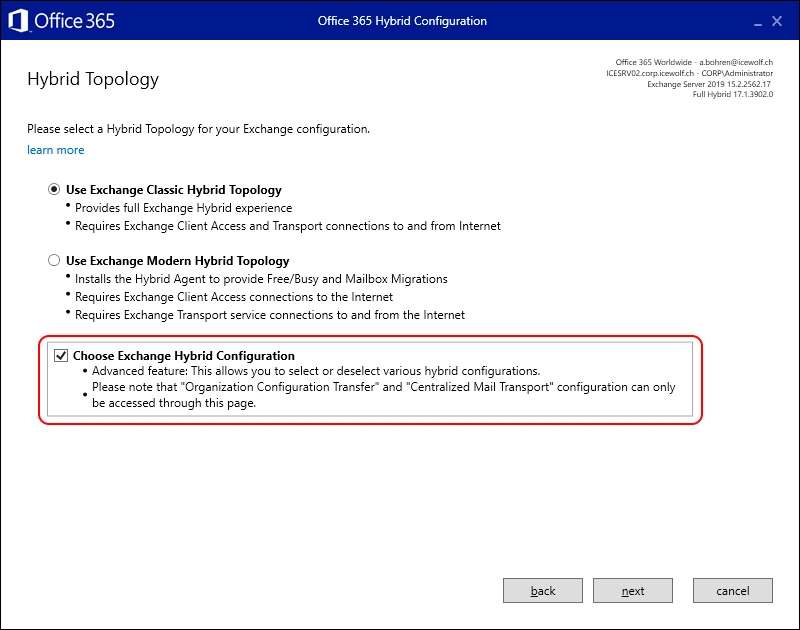

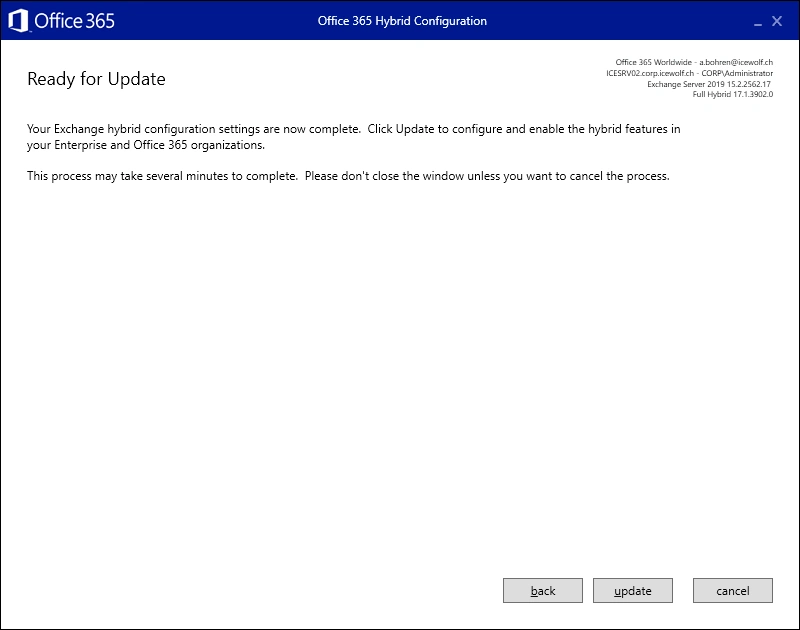

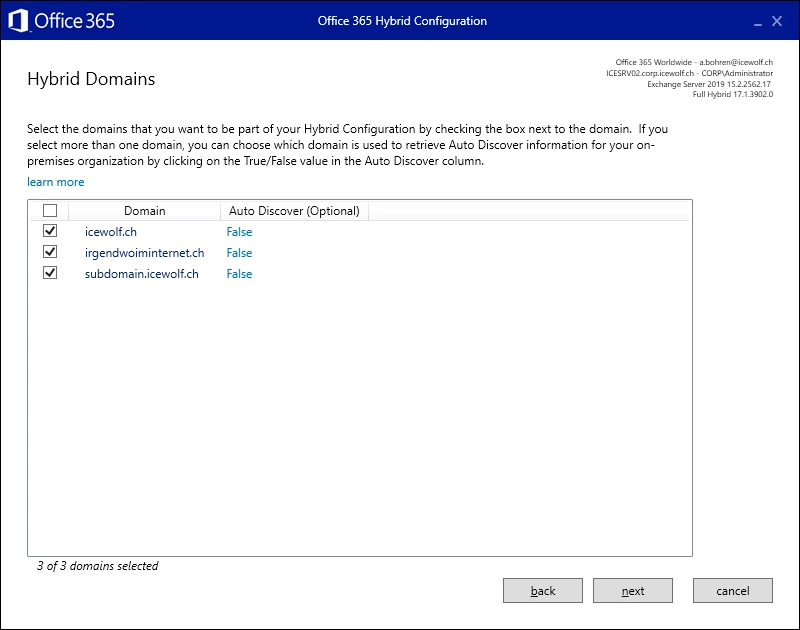

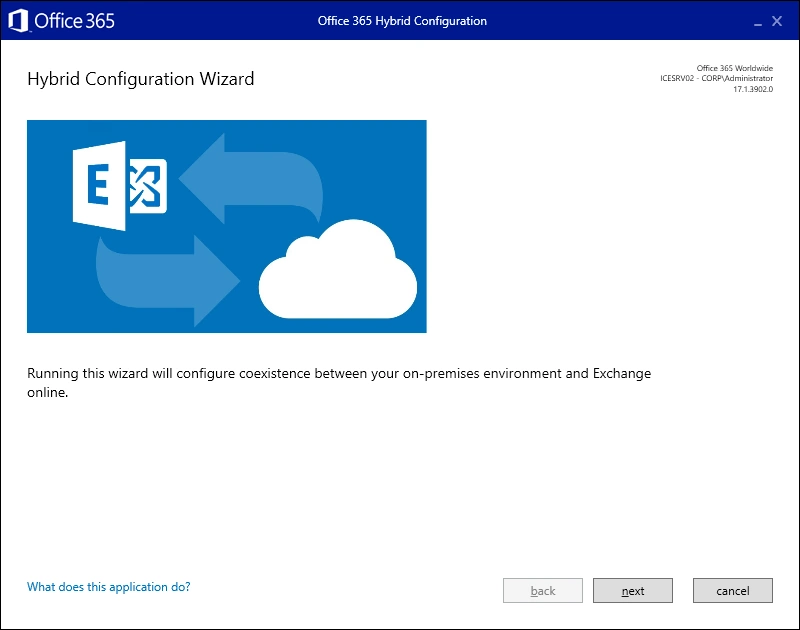

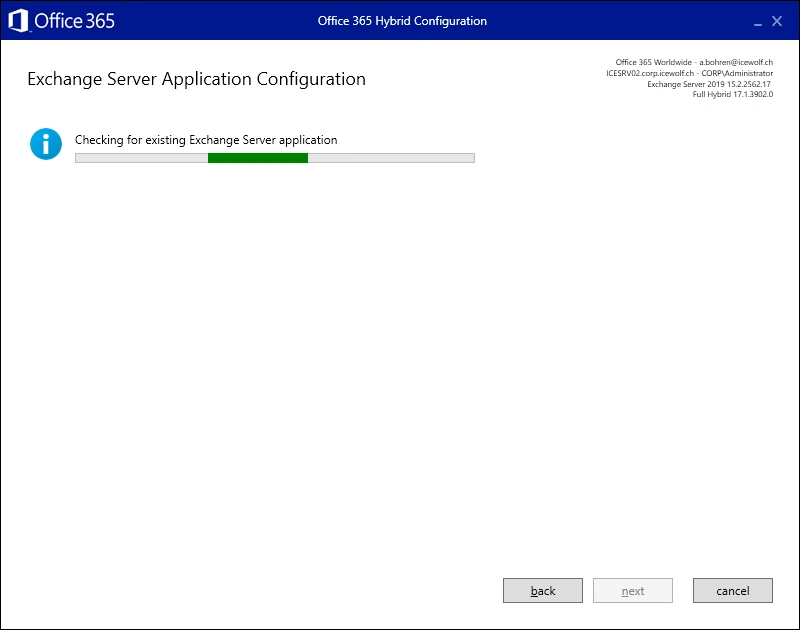

Exchange Hybrid Configuration Wizard

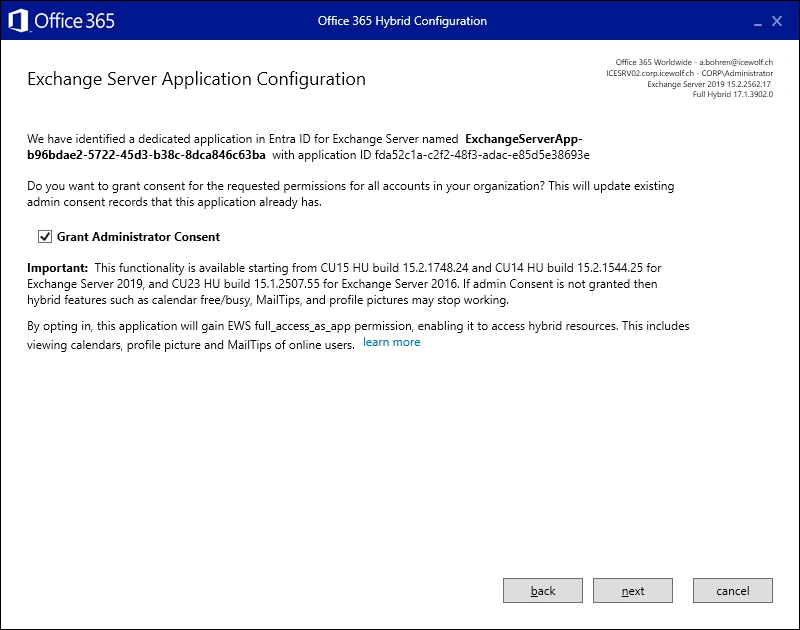

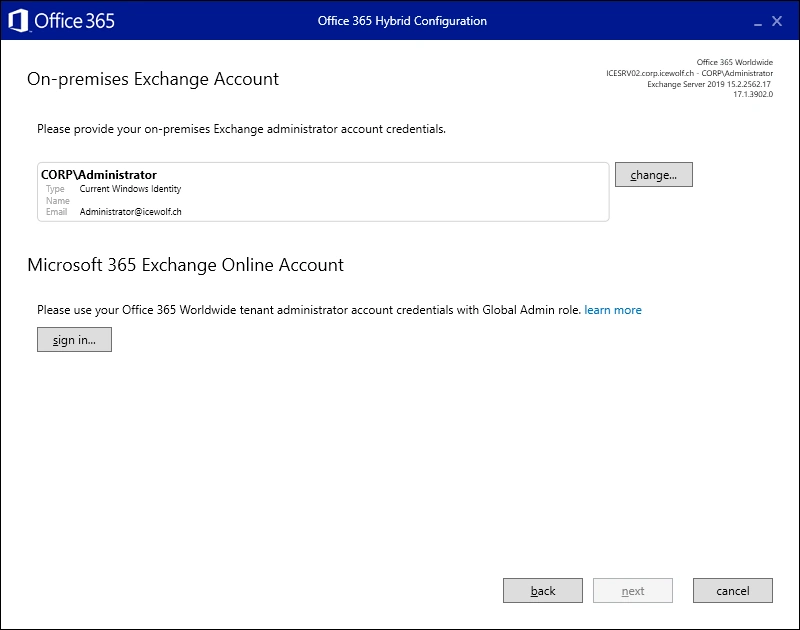

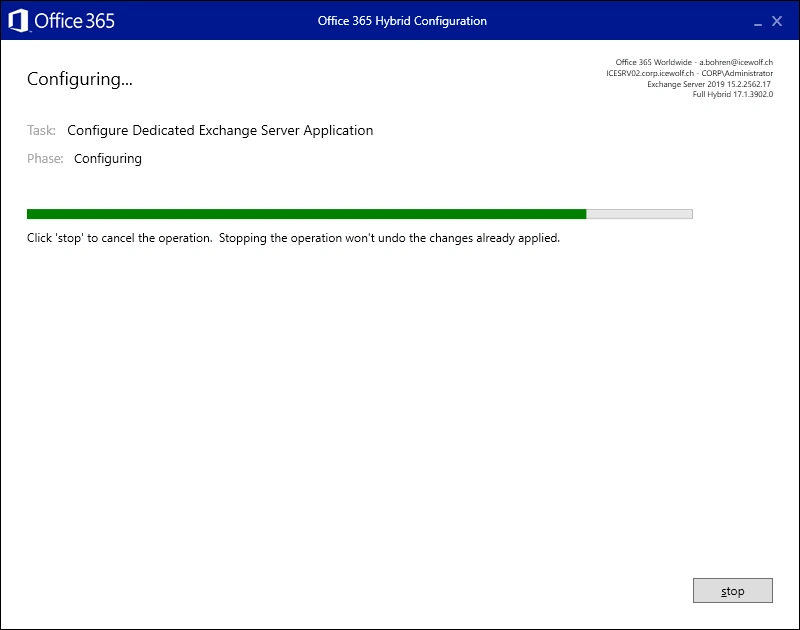

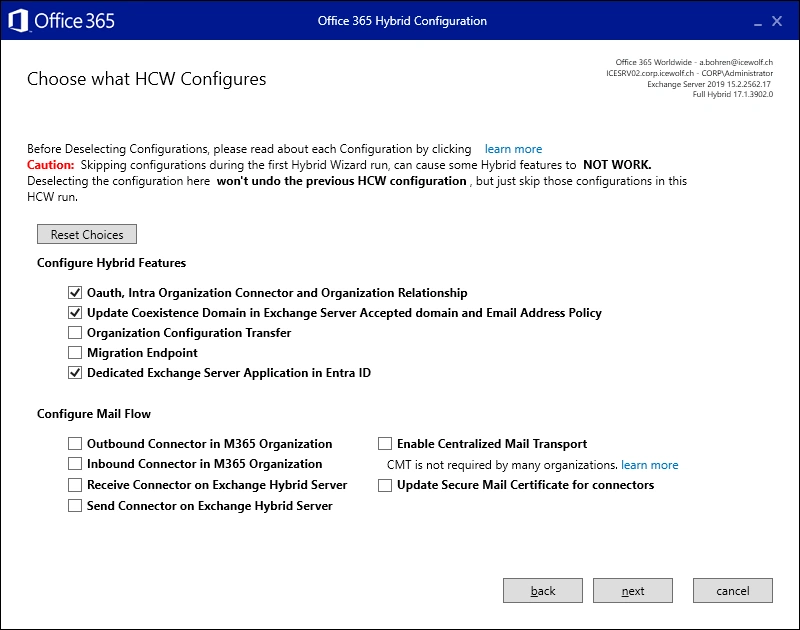

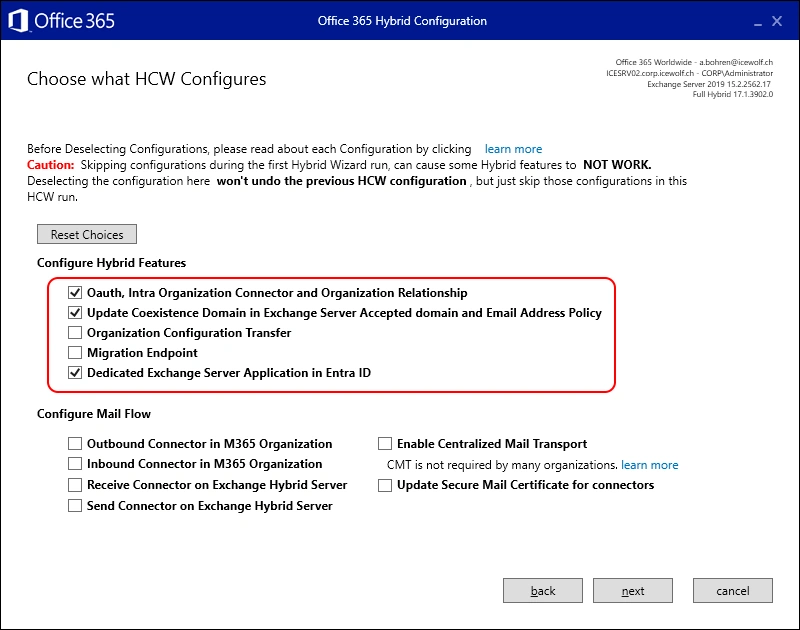

Let’s run the Hybrid Wizard to add the Exchange Server Auth Certificate to the Exchange Server dedicated Hybrid App.

Note: I’ve run the HCW with Global Administrator, so i can update the dedicated Hybrid App

Dedicated Hybrid App

The dedicated Hybrid App (Entra App) has now added the new Exchange Server Auth Certificate.

Remove the old Exchange Server Auth Certificate

Now it’s time to remove the old Exchange Server Auth Certificate from the AuthConfig

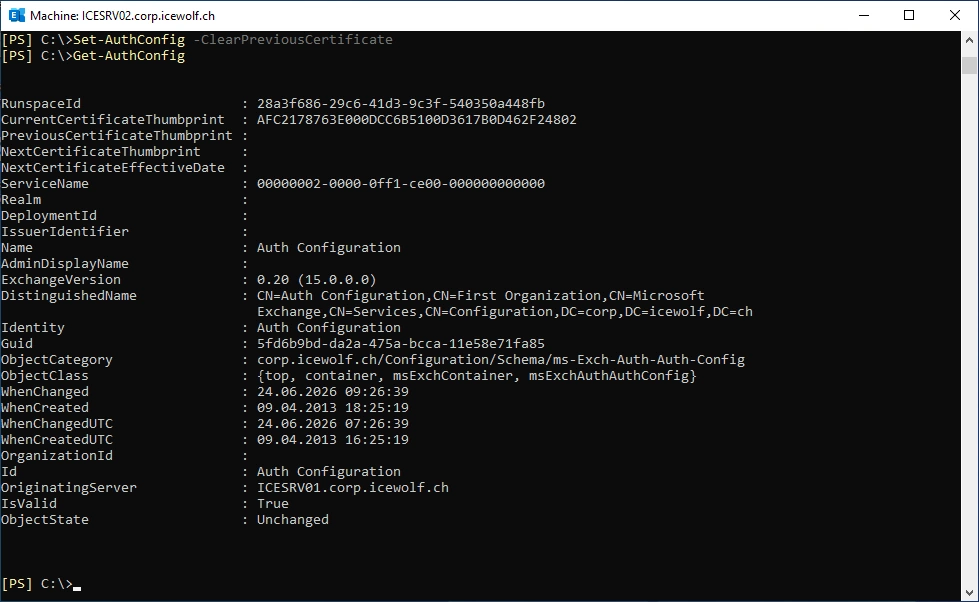

Set-AuthConfig -ClearPreviousCertificate
Get-AuthConfig

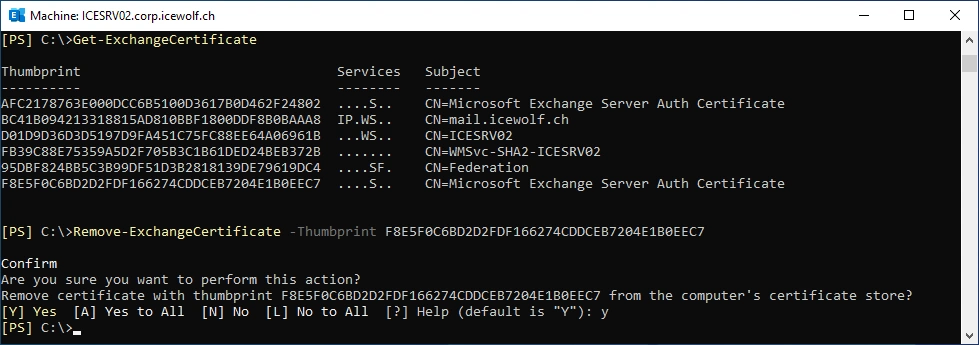

Now we can remove the old Exchange Server Auth Certificate from Exchange and the Computers Certificate Store

Get-ExchangeCertificate
Remove-ExchangeCertificate -Thumbprint F8E5F0C6BD2D2FDF166274CDDCEB7204E1B0EEC7

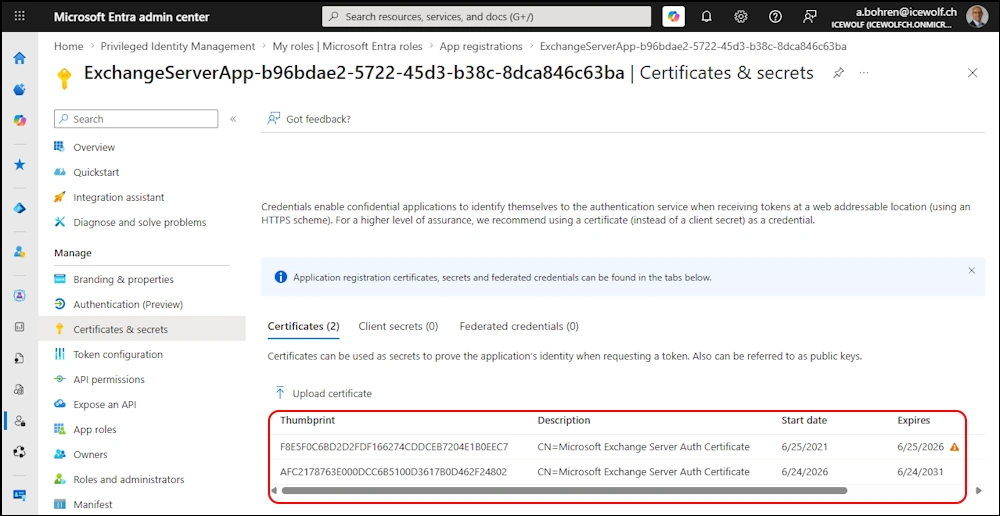

Hybrid Configuration Wizard does not remove old certificates

I’ve tested if running the Exchange Hybrid Configuration Wizard (HCW) will remove the old Exchange Server Auth Certificate. But that’s not the case.

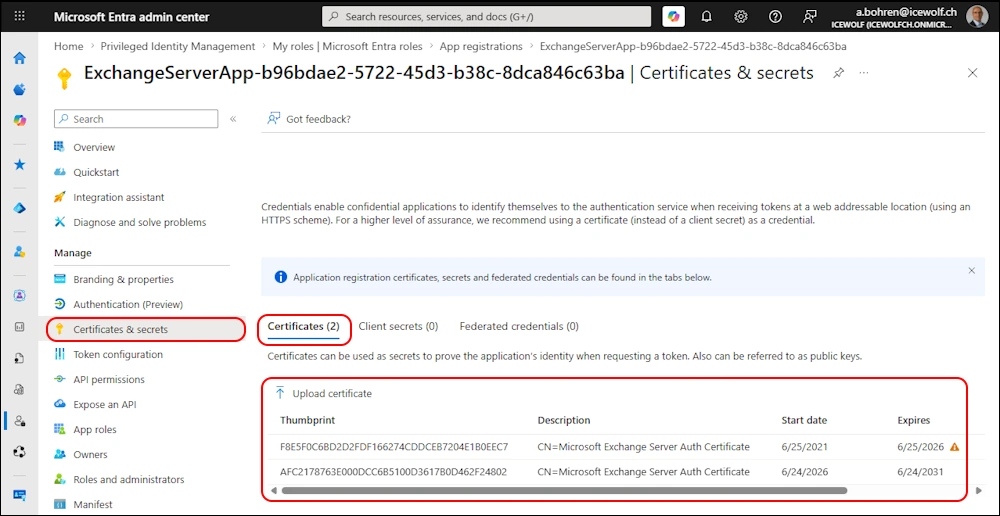

The old Exchange Server Auth Certificate is still on the dedicated Hybrid App

Test-OAuthConnectivity

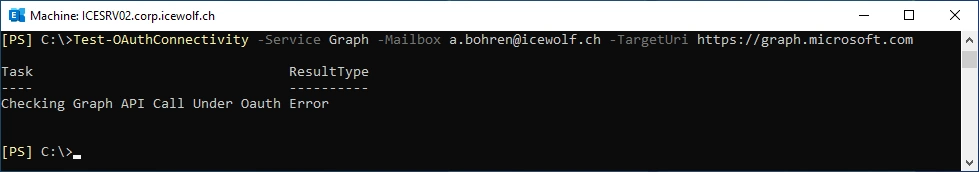

The Test-OAuthConnectivity with Graph does not work. The Hybrid Configuration Wizard is not aware of the “Graph API workflow” and resets everything back to EWS.

Test-OAuthConnectivity -Service Graph -Mailbox a.bohren@icewolf.ch -TargetUri https://graph.microsoft.com

Let’s use the ConfigureExchangeHybridApplication.ps1 Script to change the Configuration

ConfigureExchangeHybridApplication

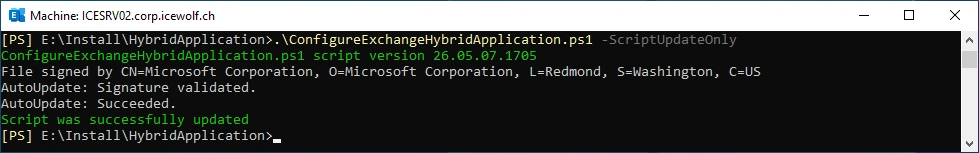

Update the Script first

.\ConfigureExchangeHybridApplication.ps1 -ScriptUpdateOnly

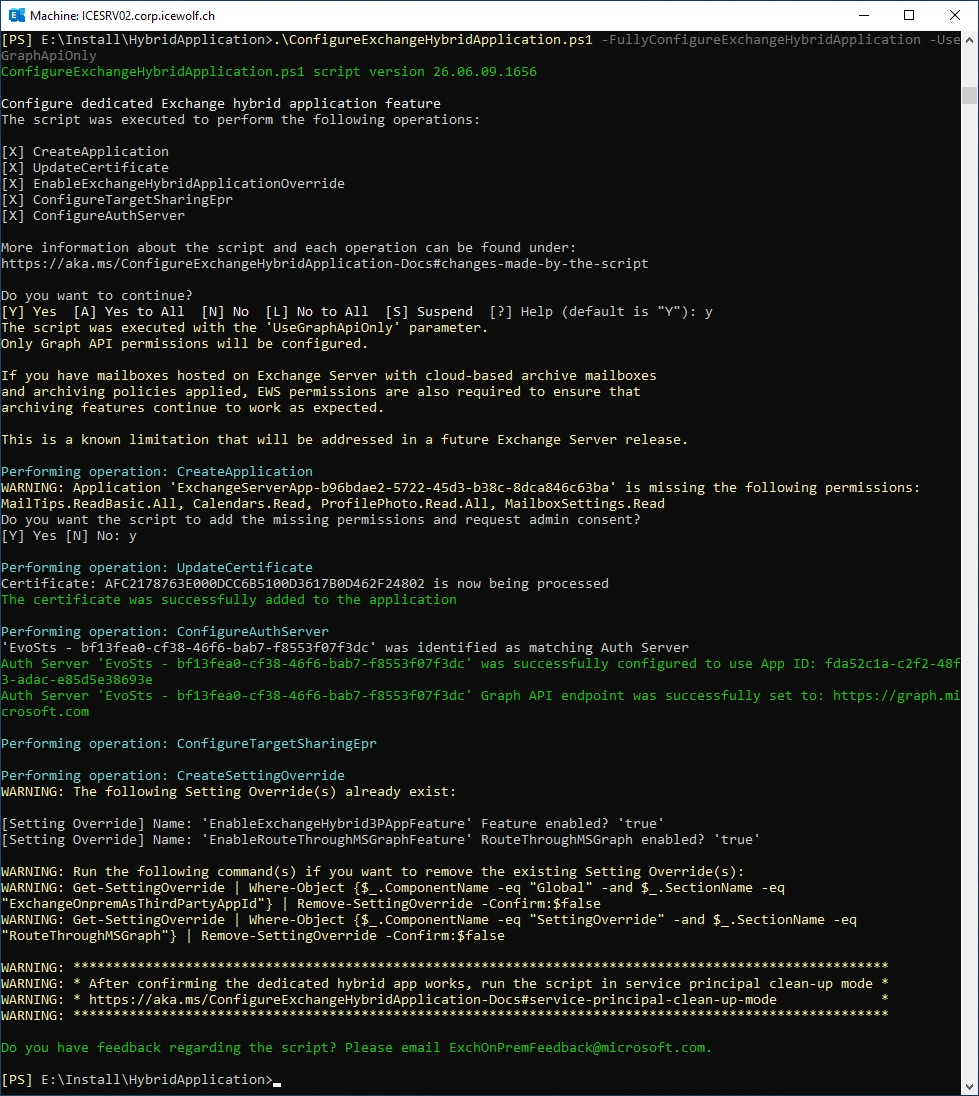

Use the “-UseGraphApiOnly” Parameter

.\ConfigureExchangeHybridApplication.ps1 -FullyConfigureExchangeHybridApplication -UseGraphApiOnly

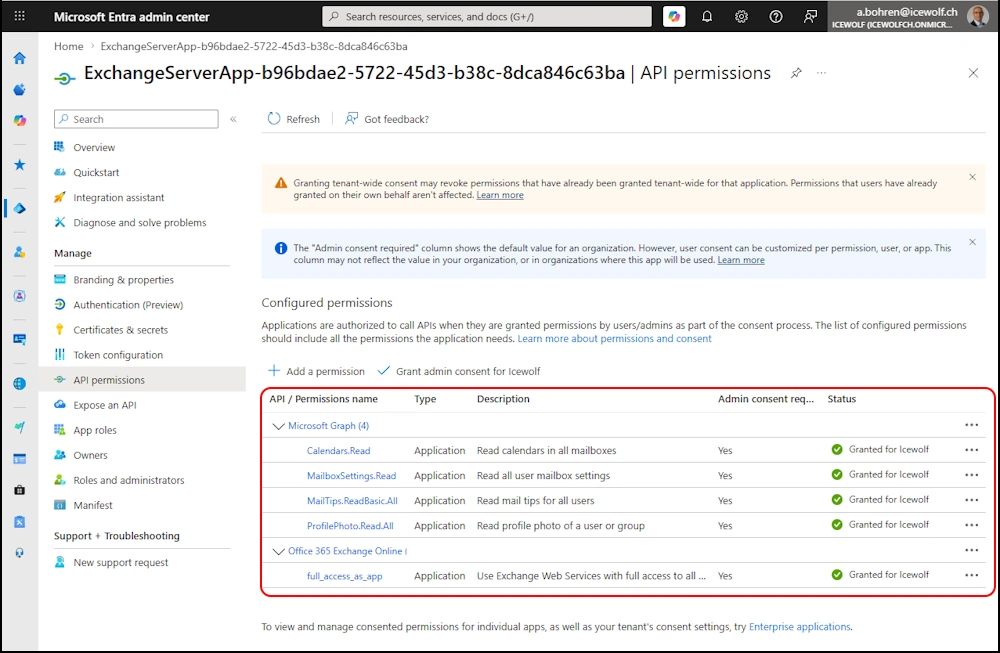

The Exchange Web Services (EWS) Permission “full_access_as_app” is still there

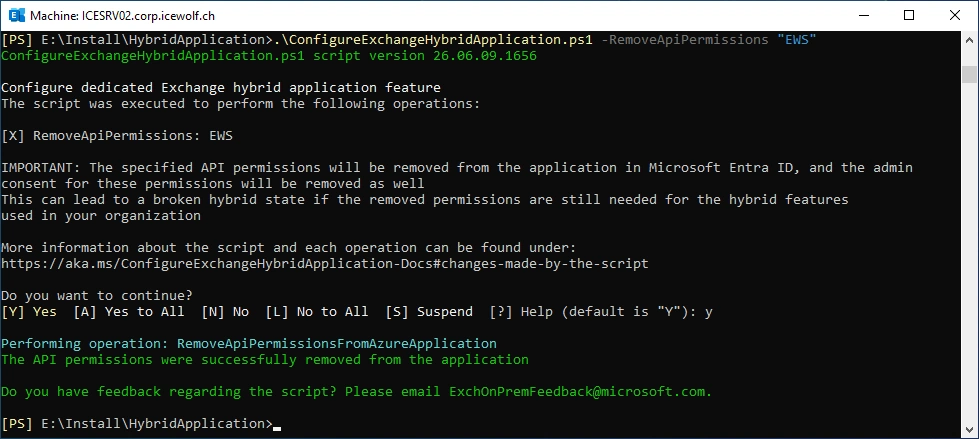

Remove the EWS Permission

.\ConfigureExchangeHybridApplication.ps1 -RemoveApiPermissions "EWS"

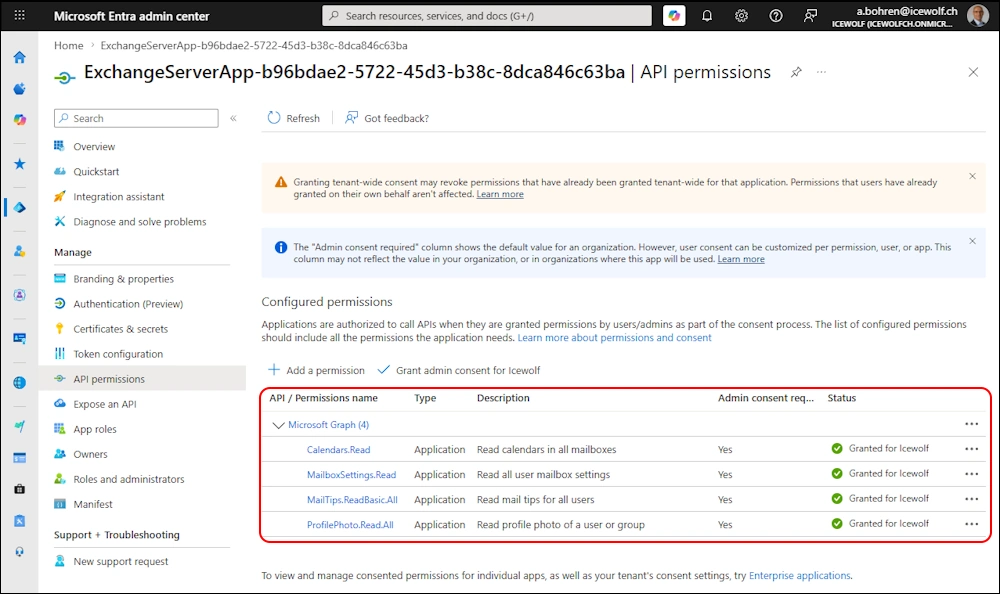

EWS Permissions are gone - only Graph Permissions are left

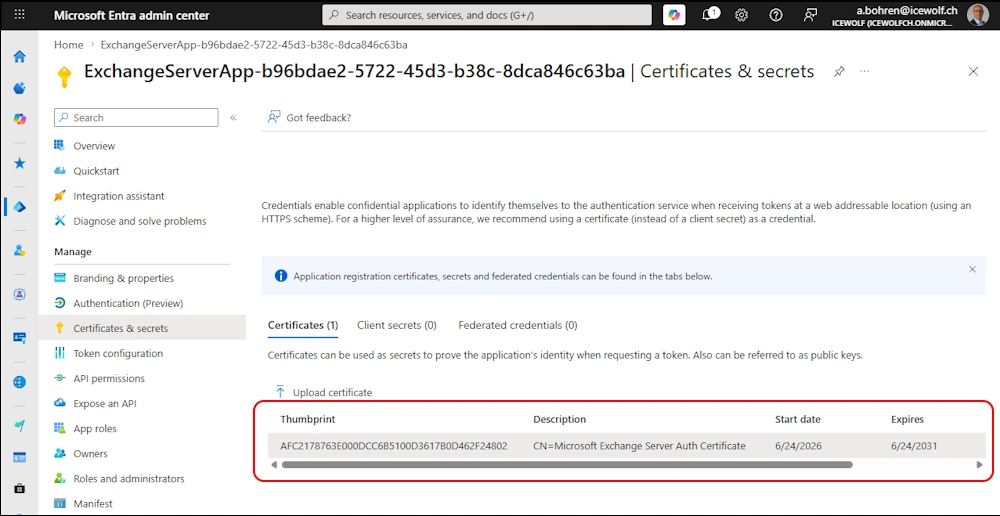

Certificate will not be deleted - i removed it manually

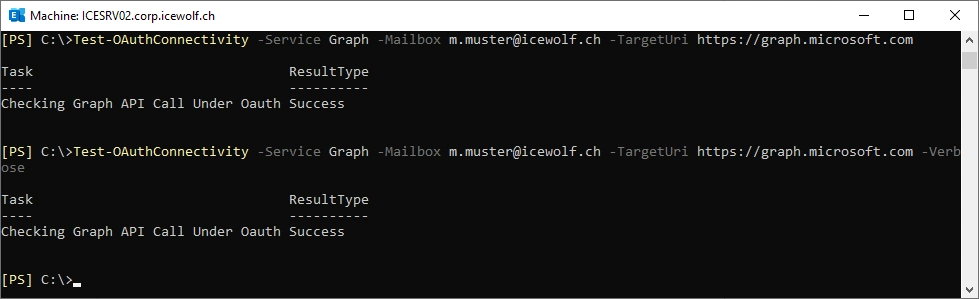

Test OAuth

Now we can test OAuth again. No diffrence if we use the -Verbose Parameter

Test-OAuthConnectivity -Service Graph -Mailbox a.bohren@icewolf.ch -TargetUri https://graph.microsoft.com
Test-OAuthConnectivity -Service Graph -Mailbox a.bohren@icewolf.ch -TargetUri https://graph.microsoft.com -Verbose

Summary

I’ve could have used the ConfigureExchangeHybridApplication.ps1 Script to update the Certificate on the dedicated Hybrid App in Entra. But i’ve showed you, that the Exchange Hybrid Configuration Wizard (HCW) will reset the Configuration for the “Graph API Workflow”. So it’s good to know what each Tool does and what to do, to get the Configuration you want.
